MPQ4569-AEC1 - 0.3A Synchronous Step-Down Converter

Description

The MPQ4569 is a step-down switching regulator with integrated high-side/low-side, high-voltage power MOSFETs.

It provides a highly efficient output of up to 0.3A.

The wide 4.5V to 75V input range accommodates a variety of step-down applications in automotive environment.

Features

  • 20μA Quiescent Current (Active mode).
  • Wide 4.5V to 75V Operating Input Range.
  • 1.2Ω/0.45Ω Internal Power MOSFETs.
  • Programmable Soft-Start.
  • FB-Tolerance: 1% at Room Temperature; 2% at Full Temperature.
  • Adjustable Output Voltage.
  • 1V Reference Voltage Output for QFN Package.
  • Low Shutdown Mode Current: 5μA.
  • Available in QFN-10 (3mmx3mm) and SOIC-8 EP Packages.
  • Available in AEC-Q100 Grade 1.

📥 Download Datasheet

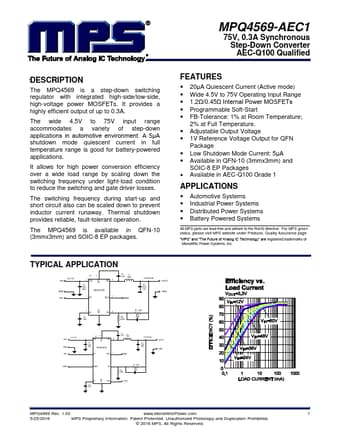

Datasheet preview – MPQ4569-AEC1

📁 Similar Datasheet

  • MPQ1000 - Quad Amplifier Transistor (Motorola)
  • MPQ1500 - Quad Transistor (Motorola)
  • MPQ2221 - NPN Transistor (Motorola)
  • MPQ2222 - QUAD TRANSISTORS (Central)
  • MPQ2222 - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - QUAD TRANSISTORS (Central Semiconductor)
  • MPQ2369 - NPN Silicon Quad Transistor (Central Semiconductor)
  • MPQ2369 - QUAD SWITCHING TRANSISTOR (Motorola)
  • MPQ2483 - QUAD AMPLIFIER TRANSISTOR (Motorola)
Other Datasheets by MPS

Full PDF Text Transcription

Click to expand full text
MPQ4569-AEC1 75V, 0.3A Synchronous Step-Down Converter AEC-Q100 Qualified DESCRIPTION The MPQ4569 is a step-down switching regulator with integrated high-side/low-side, high-voltage power MOSFETs. It provides a highly efficient output of up to 0.3A. The wide 4.5V to 75V input range accommodates a variety of step-down applications in automotive environment. A 5μA shutdown mode quiescent current in full temperature range is good for battery-powered applications. It allows for high power conversion efficiency over a wide load range by scaling down the switching frequency under light-load condition to reduce the switching and gate driver losses. The switching frequency during start-up and short circuit also can be scaled down to prevent inductor current runaway.
