MPQ4560DN - 55V Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

MPQ4560DN 55V Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MPQ4560DN

Datasheet Details

Part number	MPQ4560DN
Manufacturer	MPS
File Size	1.08 MB
Description	55V Step-Down Converter
Datasheet	MPQ4560DN Datasheet
Note	This datasheet PDF includes multiple part numbers: MPQ4560DN, MPQ4560-AEC1. Please refer to the document for exact specifications by model.

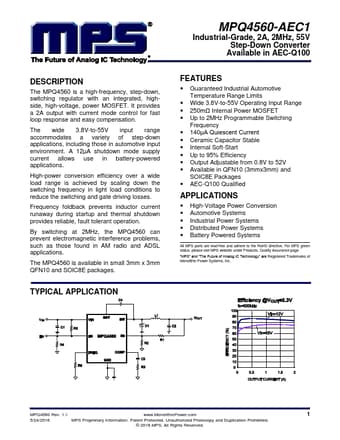

Additional preview pages of the MPQ4560DN datasheet.

Product details

Description

The MPQ4560 is a high-frequency, step-down, switching regulator with an integrated, highside, high-voltage, power MOSFET.

Features

Guaranteed Industrial Automotive Temperature Range Limits.
Wide 3.8V-to-55V Operating Input Range.
250mΩ Internal Power MOSFET.
Up to 2MHz Programmable Switching Frequency.
140μA Quiescent Current.
Ceramic Capacitor Stable.
Internal Soft-Start.
Up to 95% Efficiency.
Output Adjustable from 0.8V to 52V.
Available in QFN10 (3mmx3mm) and SOIC8E Packages.
AEC-Q100 Qualified.
