MPQ2143DJ - Synchronous Step-Down Switcher

Product Overview

MPS

📥 Download Datasheet

MPQ2143DJ Synchronous Step-Down Switcher by MPS - Datasheet Preview — Datasheet preview – MPQ2143DJ

Datasheet Details

Part number	MPQ2143DJ
Manufacturer	MPS
File Size	760.68 KB
Description	Synchronous Step-Down Switcher
Datasheet	MPQ2143DJ Datasheet
Note	This datasheet PDF includes multiple part numbers: MPQ2143DJ, MPQ2143. Please refer to the document for exact specifications by model.

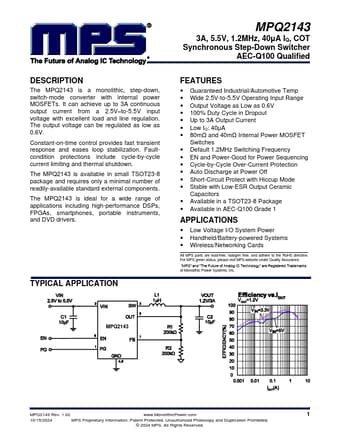

Additional preview pages of the MPQ2143DJ datasheet.

Product details

Description

The MPQ2143 is a monolithic, step-down, switch-mode converter with internal power MOSFETs. to-5.5V input voltage with excellent load and line regulation.

Features

Guaranteed Industrial/Automotive Temp.
Wide 2.5V-to-5.5V Operating Input Range.
Output Voltage as Low as 0.6V.
100% Duty Cycle in Dropout.
Up to 3A Output Current.
Low IQ: 40µA.
80mΩ and 40mΩ Internal Power MOSFET Switches.
Default 1.2MHz Switching Frequency.
EN and Power-Good for Power Sequencing.
Cycle-by-Cycle Over-Current Protection.
Auto Discharge at Power Off.
Short-Circuit Protect.
