MPQ2122 - SYNC Buck Regulator

Product Overview

MPS

📥 Download Datasheet

MPQ2122 SYNC Buck Regulator by MPS - Datasheet Preview — Datasheet preview – MPQ2122

Datasheet Details

Part number	MPQ2122
Manufacturer	MPS
File Size	555.17 KB
Description	SYNC Buck Regulator
Datasheet	MPQ2122 Datasheet

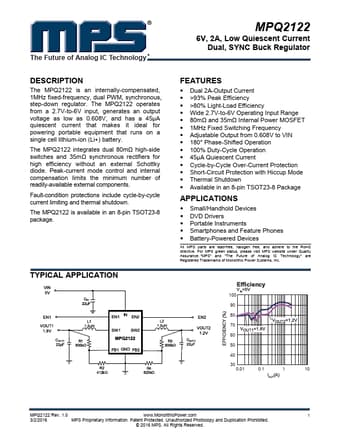

Additional preview pages of the MPQ2122 datasheet.

Product details

Description

The MPQ2122 is an internally-compensated, 1MHz fixed-frequency, dual PWM, synchronous, step-down regulator.

Features

Dual 2A-Output Current.
>93% Peak Efficiency.
>80% Light-Load Efficiency.
Wide 2.7V-to-6V Operating Input Range.
80mΩ and 35mΩ Internal Power MOSFET.
1MHz Fixed Switching Frequency.
Adjustable Output from 0.608V to VIN.
180° Phase-Shifted Operation.
100% Duty-Cycle Operation.
45µA Quiescent Current.
Cycle-by-Cycle Over-Current Protection.
Short-Circuit Protection with Hiccup Mode.
