MPM54313GBJ - Triple 3A Power Module

Download the MPM54313GBJ datasheet PDF. This datasheet also covers the MPM54313 variant, as both devices belong to the same triple 3a power module family and are provided as variant models within a single manufacturer datasheet.

Description

The MPM54313 is a triple 3A, fully integrated power module with an I2C interface.

The MPM54313 offers a complete power solution with built-in power-on/-off sequencing control, configurable soft start, compensation, and various protection thresholds.

Features

  • include under-voltage lockout (UVLO), over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown. The MPM54313 requires a minimal number external components, and it is available in a compact BGA (8mmx9mmx2.58mm) package. MPM54313 16V, Triple 3A Power Module with I2C Interface.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MPM54313-MPS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MPM-01V Board Mount AC/DC Power Supplies MicroPower Direct
MPM-02V Board Mount AC/DC Power Supplies MicroPower Direct
MPM-03 3W Ultra-Miniature DIP AC/DC Power Supplies MicroPower Direct
MPM-04E Board Mount 4W Single And Dual Output AC/DC Power Supplies MicroPower Direct
MPM-04V Board Mount 4W Ultra-Wide Input Range AC/DC Power Supplies MicroPower Direct

Other Datasheets by Monolithic Power Systems

Part Number Description
MPM54313 Triple 3A Power Module
MPM54304 Quad-Output Power Module
MPM54304GMN Quad-Output Power Module
MPM54322 16V 3A Dual-Output Power Module
MPM54504 Quad DC/DC Power Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

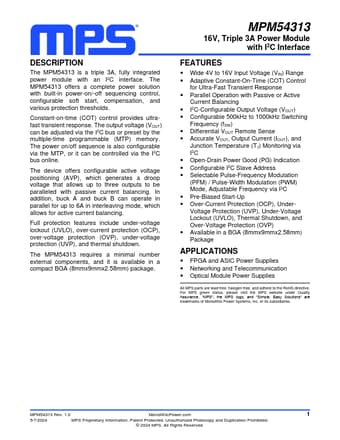

DESCRIPTION The MPM54313 is a triple 3A, fully integrated power module with an I2C interface. The MPM54313 offers a complete power solution with built-in power-on/-off sequencing control, configurable soft start, compensation, and various protection thresholds. Constant-on-time (COT) control provides ultrafast transient response. The output voltage (VOUT) can be adjusted via the I2C bus or preset by the multiple-time programmable (MTP) memory. The power on/off sequence is also configurable via the MTP, or it can be controlled via the I2C bus online. The device offers configurable active voltage positioning (AVP), which generates a droop voltage that allows up to three outputs to be paralleled with passive current balancing.
