MP5424 - 5V PMIC

Name: MP5424
SKU: MP5424-1583553

MPS

The MP5424 by MPS is a 5V PMIC. Below is the official datasheet preview.

📥 Download Datasheet

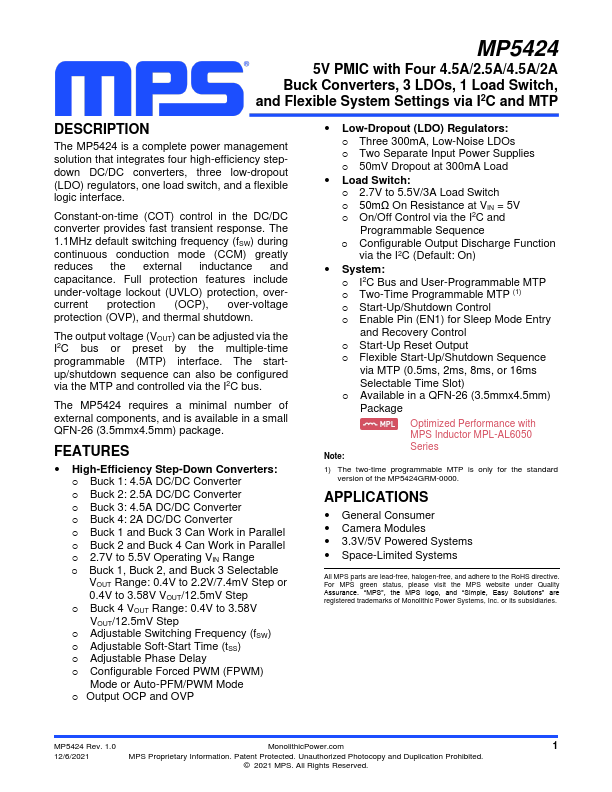

MP5424 5V PMIC by MPS - Datasheet Preview — Official preview page of the **MP5424** 5V PMIC datasheet (MPS).

Datasheet Details

Part number	MP5424
Manufacturer	MPS
File Size	1.56 MB
Description	5V PMIC
Datasheet	MP5424-MPS.pdf

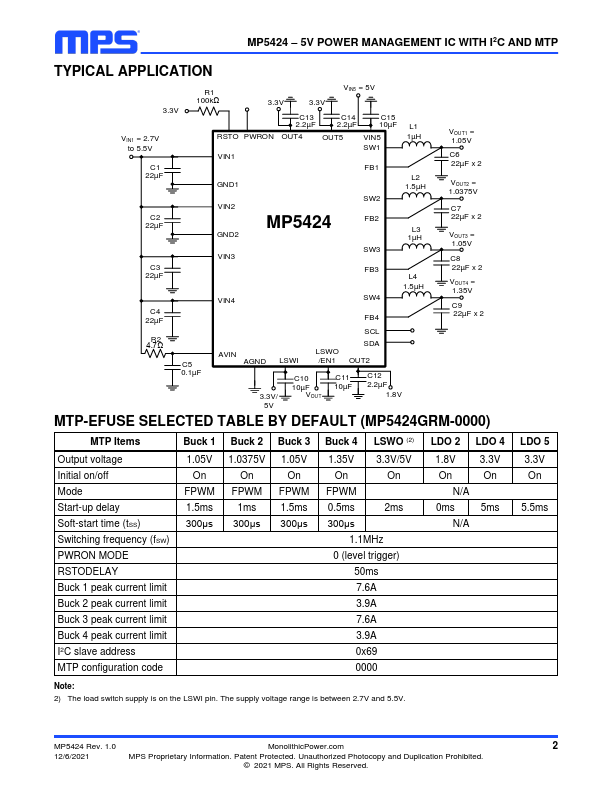

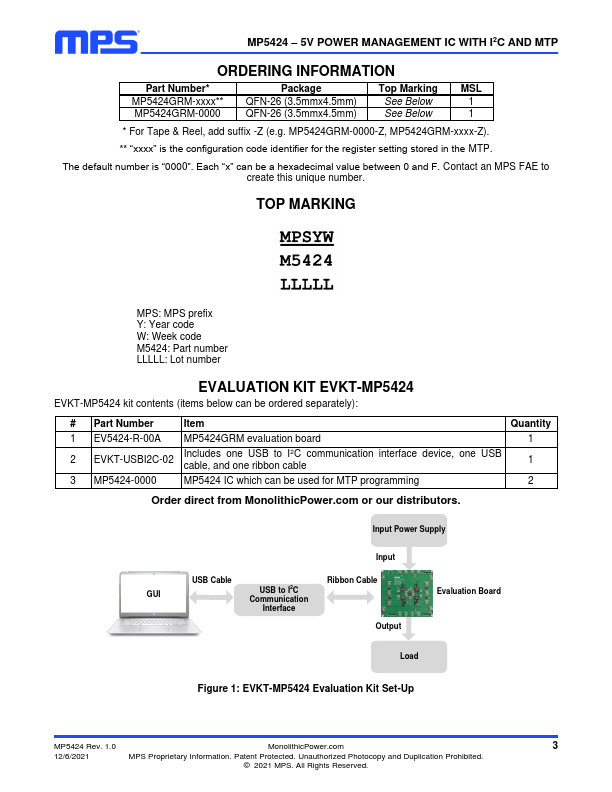

Additional preview pages of the MP5424 datasheet.

MP5424 Product details

Description

The MP5424 is a complete power management solution that integrates four high-efficiency stepdown DC/DC converters, three low-dropout (LDO) regulators, one load switch, and a flexible logic interface.

Features

include under-voltage lockout (UVLO) protection, overcurrent protection (OCP), over-voltage protection (OVP), and thermal shutdown. The output voltage (VOUT) can be adjusted via the I2C bus or preset by the multiple-time programmable (MTP) interface. The startup/shutdown sequence can also be configured via the MTP and controlled via the I2C bus. The MP5424 requires a minimal number of external components, and is available in a small QFN-26 (3.5mmx4.5mm) package.
