MP5418 - Negative Charge Pump and Adjustable Regulator

MPS

📥 Download Datasheet

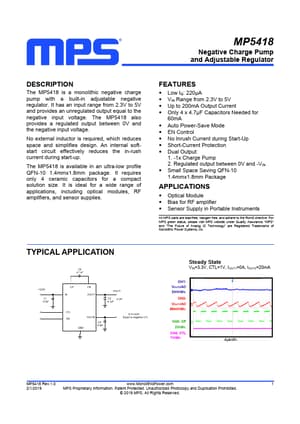

MP5418 Datasheet Preview — Preview of MP5418 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP5418
Manufacturer	MPS
File Size	469.14 KB
Description	Negative Charge Pump and Adjustable Regulator
Datasheet	MP5418-MPS.pdf

MP5418 Product details

Description

The MP5418 is a monolithic negative charge pump with a built-in adjustable negative regulator.

Features

Low IQ: 220μA.
VIN Range from 2.3V to 5V.
Up to 200mA Output Current.
Only 4 x 4.7μF Capacitors Needed for 60mA.
Auto Power-Save Mode.
EN Control.
No Inrush Current during Start-Up.
Short-Current Protection.
Dual Output: 1. -1x Charge Pump 2. Regulated output between 0V and -VIN.
Small Space Saving QFN-10 1.4mmx1.8mm Package.
