MP44014GS - Boundary Mode PFC Controller

Product Overview

MPS

📥 Download Datasheet

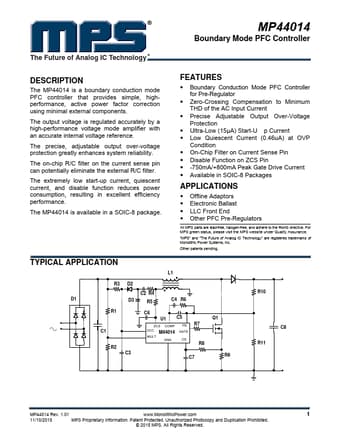

MP44014GS Boundary Mode PFC Controller by MPS - Datasheet Preview — Datasheet preview – MP44014GS

Datasheet Details

Part number	MP44014GS
Manufacturer	MPS
File Size	380.49 KB
Description	Boundary Mode PFC Controller
Datasheet	MP44014GS Datasheet
Note	This datasheet PDF includes multiple part numbers: MP44014GS, MP44014. Please refer to the document for exact specifications by model.
Additional preview pages of the MP44014GS datasheet.

Product details

Description

The MP44014 is a boundary conduction mode PFC controller that provides simple, highperformance, active power factor correction using minimal external components.

Features

Boundary Conduction Mode PFC Controller for Pre-Regulator.
Zero-Crossing Compensation to Minimum THD of the AC Input Current.
Precise Adjustable Output Over-Voltage Protection.
Ultra-Low (15μA) Start-U p Current.
Low Quiescent Current (0.46uA) at OVP Condition.
On-Chip Filter on Current Sense Pin.
Disable Function on ZCS Pin.
-750mA/+800mA Peak Gate Drive Current.
Available in SOIC-8 Packages.
