MP44014 - Boundary Mode PFC Controller

Product Overview

MPS

📥 Download Datasheet

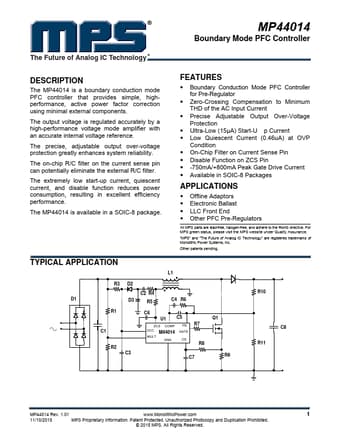

MP44014 Boundary Mode PFC Controller by MPS - Datasheet Preview — Datasheet preview – MP44014

Datasheet Details

Part number	MP44014
Manufacturer	MPS
File Size	380.49 KB
Description	Boundary Mode PFC Controller
Datasheet	MP44014 Datasheet
Additional preview pages of the MP44014 datasheet.

Product details

Description

The MP44014 is a boundary conduction mode PFC controller that provides simple, highperformance, active power factor correction using minimal external components.

Features

Boundary Conduction Mode PFC Controller for Pre-Regulator.
Zero-Crossing Compensation to Minimum THD of the AC Input Current.
Precise Adjustable Output Over-Voltage Protection.
Ultra-Low (15μA) Start-U p Current.
Low Quiescent Current (0.46uA) at OVP Condition.
On-Chip Filter on Current Sense Pin.
Disable Function on ZCS Pin.
-750mA/+800mA Peak Gate Drive Current.
Available in SOIC-8 Packages.
