MP3389 - Step-up White LED Driver

Product Overview

MPS

📥 Download Datasheet

MP3389 Step-up White LED Driver by MPS - Datasheet Preview — Datasheet preview – MP3389

Datasheet Details

Part number	MP3389
Manufacturer	MPS
File Size	372.52 KB
Description	Step-up White LED Driver
Datasheet	MP3389 Datasheet
Additional preview pages of the MP3389 datasheet.

Product details

Description

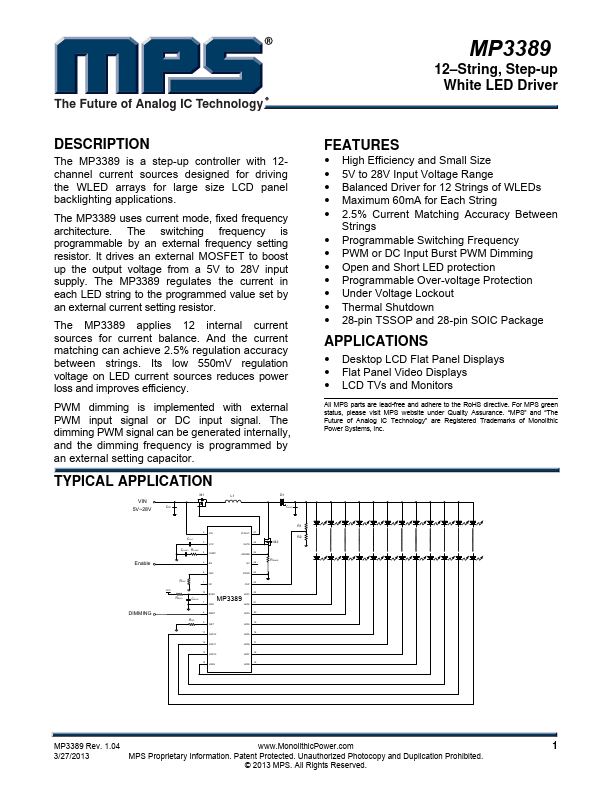

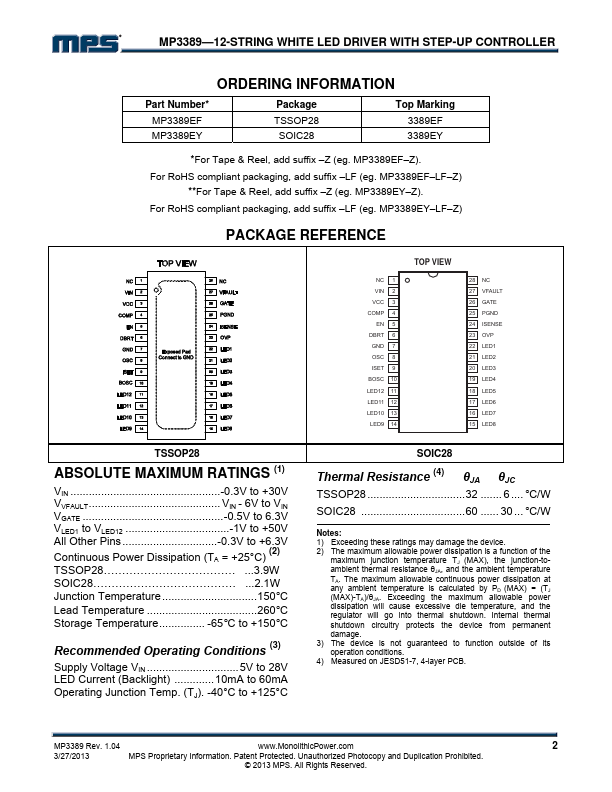

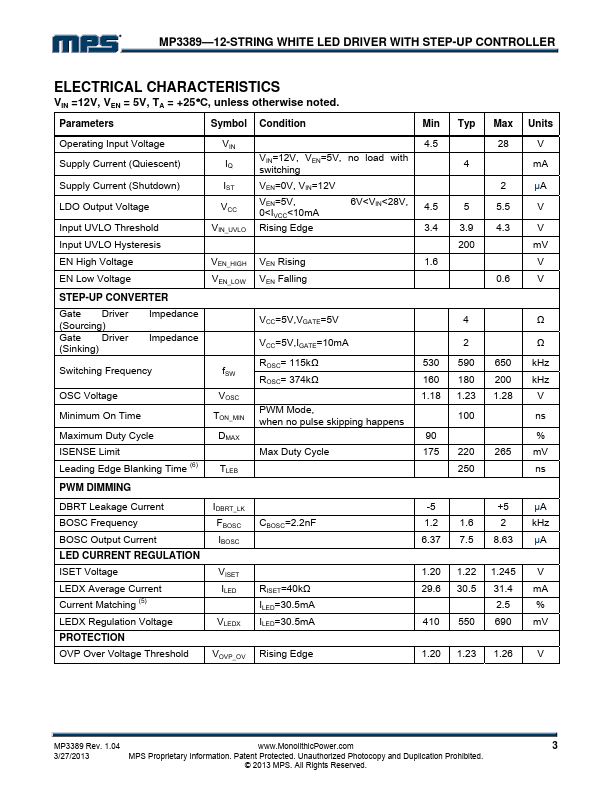

The MP3389 is a step-up controller with 12channel current sources designed for driving the WLED arrays for large size LCD panel backlighting applications.

Features

High Efficiency and Small Size.
5V to 28V Input Voltage Range.
Balanced Driver for 12 Strings of WLEDs.
Maximum 60mA for Each String.
2.5% Current Matching Accuracy Between Strings.
Programmable Switching Frequency.
PWM or DC Input Burst PWM Dimming.
Open and Short LED protection.
Programmable Over-voltage Protection.
Under Voltage Lockout.
Thermal Shutdown.
28-pin TSSOP and 28-pin SOIC P.
