MP3324GRE - 8-Channel 100mA/Ch LED Driver

Product Overview

MPS

📥 Download Datasheet

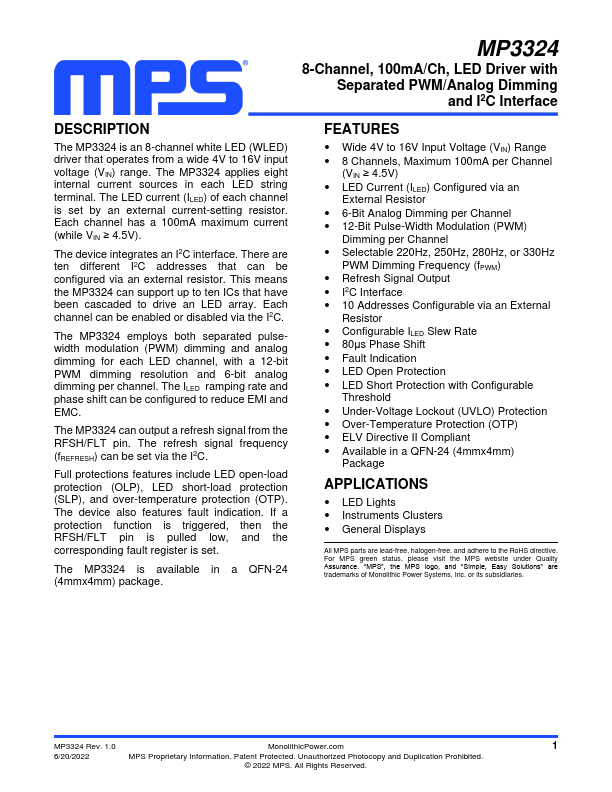

MP3324GRE 8-Channel 100mA/Ch LED Driver by MPS - Datasheet Preview — Datasheet preview – MP3324GRE

Datasheet Details

Part number	MP3324GRE
Manufacturer	MPS
File Size	652.77 KB
Description	8-Channel 100mA/Ch LED Driver
Datasheet	MP3324GRE Datasheet
Note	This datasheet PDF includes multiple part numbers: MP3324GRE, MP3324. Please refer to the document for exact specifications by model.

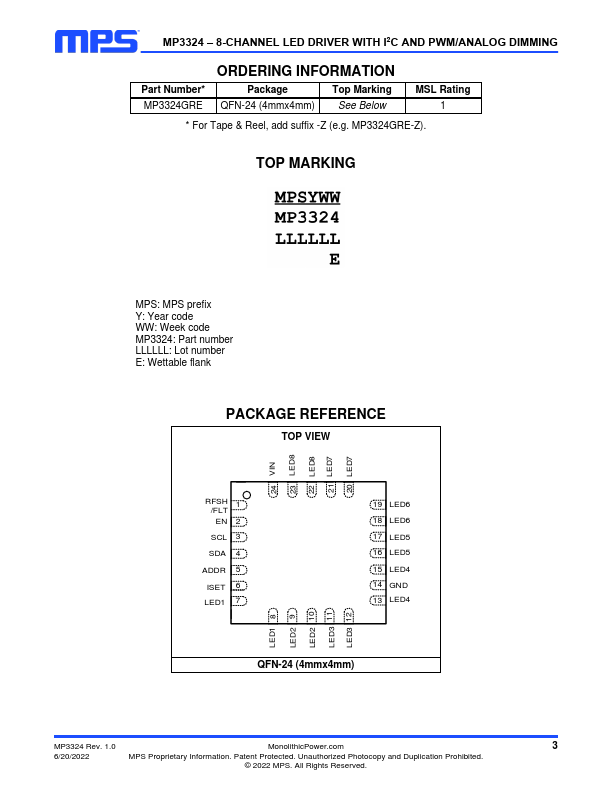

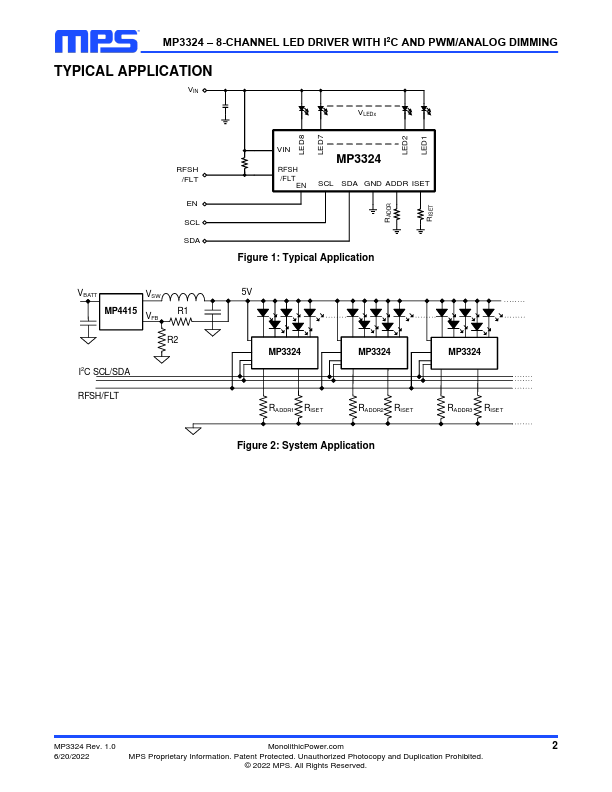

Additional preview pages of the MP3324GRE datasheet.

Product details

Description

The MP3324 is an 8-channel white LED (WLED) driver that operates from a wide 4V to 16V input voltage (VIN) range.

Features

include LED open-load protection (OLP), LED short-load protection (SLP), and over-temperature protection (OTP). The device also features fault indication. If a protection function is triggered, then the RFSH/FLT pin is pulled low, and the corresponding fault register is set. The MP3324 is available in a QFN-24 (4mmx4mm) package.
