MP2359DT - Step-Down Converter

Product Overview

MPS

MP2359DT Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MP2359DT

Datasheet Details

Part number	MP2359DT
Manufacturer	MPS
File Size	632.57 KB
Description	Step-Down Converter
Datasheet	MP2359DT Datasheet
Note	This datasheet PDF includes multiple part numbers: MP2359DT, MP2359. Please refer to the document for exact specifications by model.

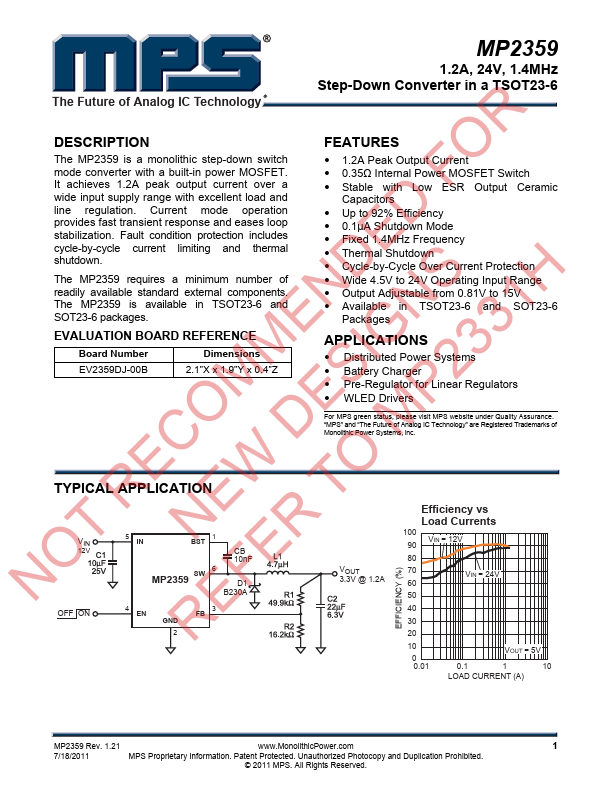

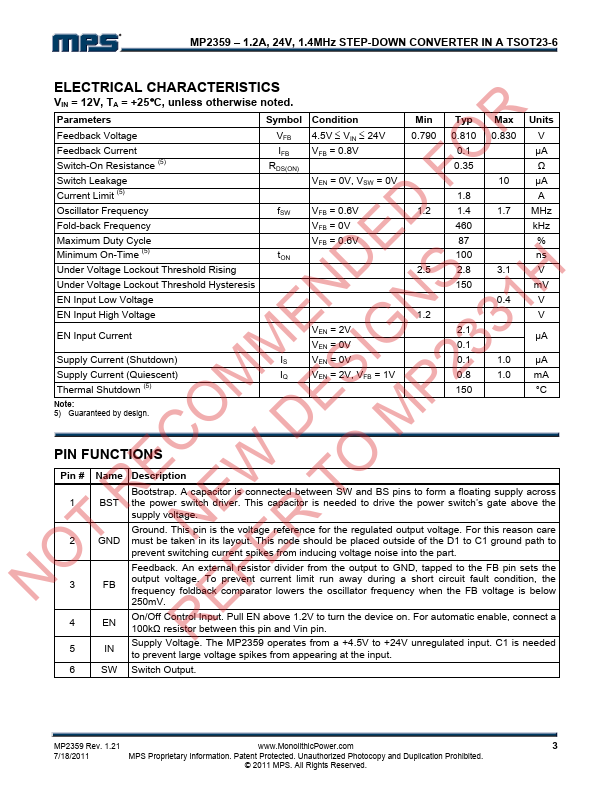

Additional preview pages of the MP2359DT datasheet.

Product details

Description

The MP2359 is a monolithic step-down switch O mode converter with a built-in power MOSFET.It achieves 1.2A peak output current over a F wide input supply range with excellent load and line regulation.Current mode operation provides fast transient response and eases loop D stabilization.Fault condition protection includes cycle-by-cycle current limiting and thermal E shutdown.The MP2359 requires a minimum number of D S readily available standard external components.H The MP2359 is available

Features

1.2A Peak Output Current.
0.35Ω Internal Power MOSFET Switch.
Stable with Low ESR Output Ceramic Capacitors.
Up to 92% Efficiency.
0.1μA Shutdown Mode.
Fixed 1.4MHz Frequency.
Thermal Shutdown.
Cycle-by-Cycle Over Current Protection.
Wide 4.5V to 24V Operating Input Range.
Output Adjustable from 0.81V to 15V.
Available in TSOT23-6 and SOT23-6 Packages.
