MP2355 - 3A 23V 380KHz Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

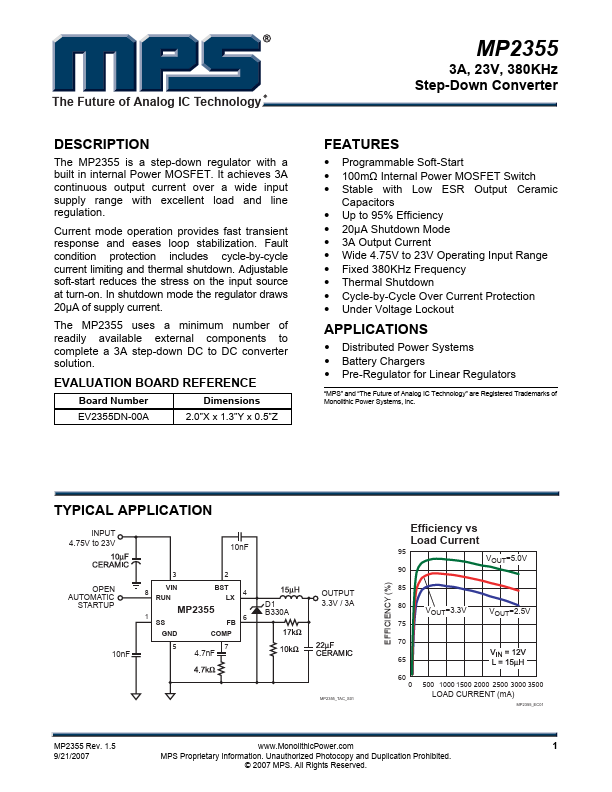

MP2355 3A 23V 380KHz Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MP2355

Datasheet Details

Part number	MP2355
Manufacturer	MPS
File Size	293.34 KB
Description	3A 23V 380KHz Step-Down Converter
Datasheet	MP2355 Datasheet

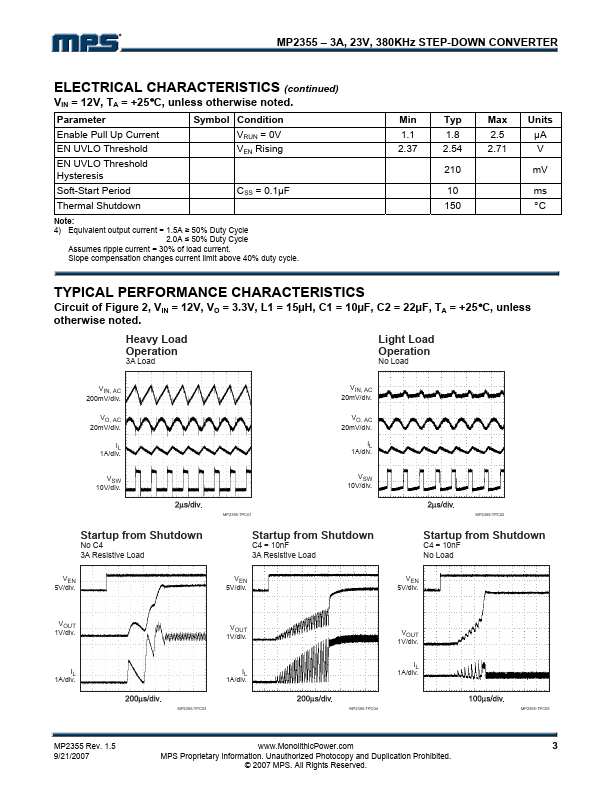

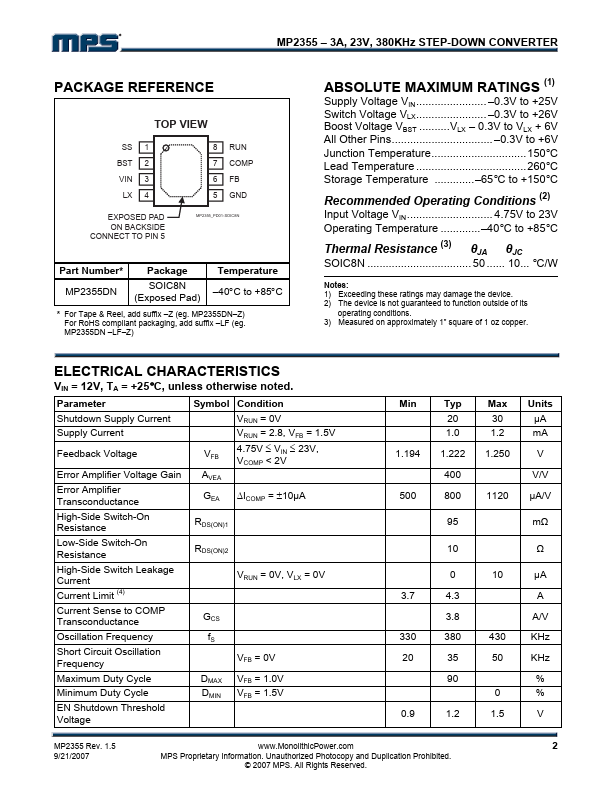

Additional preview pages of the MP2355 datasheet.

Product details

Description

The MP2355 is a step-down regulator with a built in internal Power MOSFET.

Features

Programmable Soft-Start.
100mΩ Internal Power MOSFET Switch.
Stable with Low ESR Output Ceramic Capacitors.
Up to 95% Efficiency.
20μA Shutdown Mode.
3A Output Current.
Wide 4.75V to 23V Operating Input Range.
Fixed 380KHz Frequency.
Thermal Shutdown.
Cycle-by-Cycle Over Current Protection.
Under Voltage Lockout.
