MP2333H - 3A 1.2MHz Synchronous Buck Converter

MPS

📥 Download Datasheet

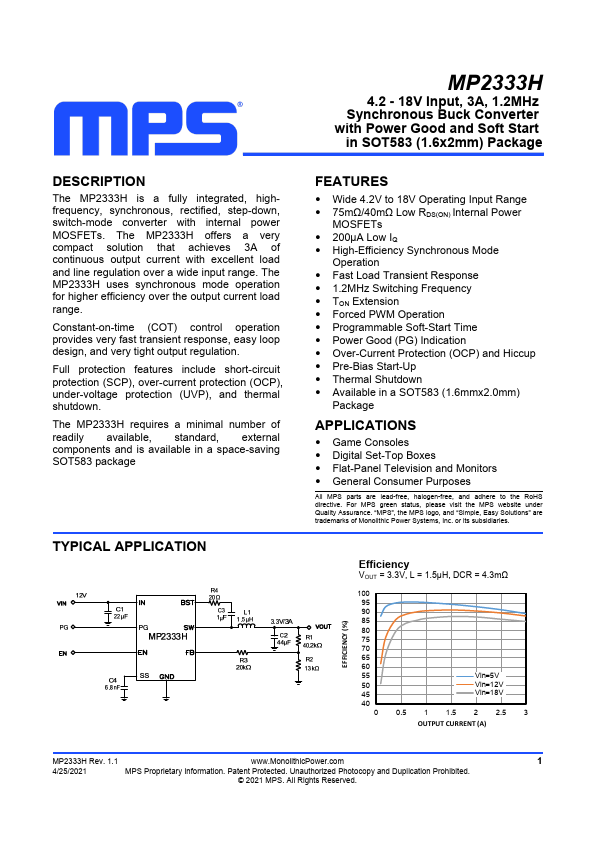

MP2333H Datasheet Preview — Preview of MP2333H PDF

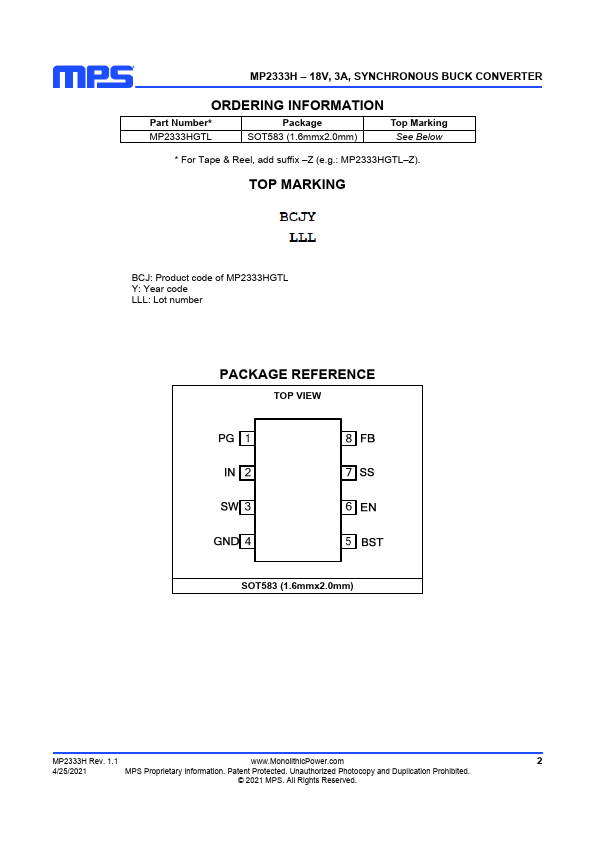

datasheet Preview Page 2

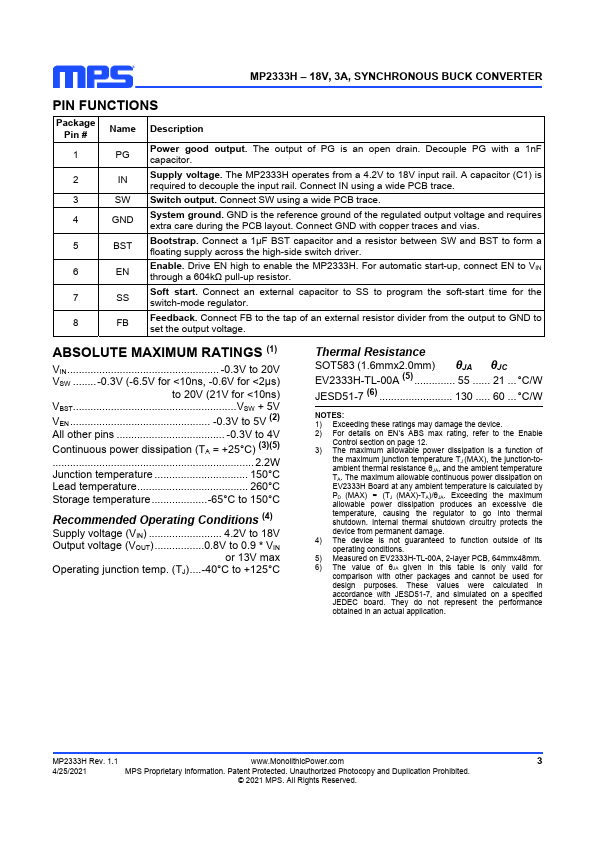

datasheet Preview Page 3

Datasheet Details

Part number	MP2333H
Manufacturer	MPS
File Size	1.13 MB
Description	3A 1.2MHz Synchronous Buck Converter
Datasheet	MP2333H-MPS.pdf

MP2333H Product details

Description

The MP2333H is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

Features

include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2333H requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package.
