MP2155GQ - High Efficiency Single Inductor Buck-Boost Converter

Product Overview

MPS

📥 Download Datasheet

MP2155GQ High Efficiency Single Inductor Buck-Boost Converter by MPS - Datasheet Preview — Datasheet preview – MP2155GQ

Datasheet Details

Part number	MP2155GQ
Manufacturer	MPS
File Size	885.69 KB
Description	High Efficiency Single Inductor Buck-Boost Converter
Datasheet	MP2155GQ Datasheet
Note	This datasheet PDF includes multiple part numbers: MP2155GQ, MP2155. Please refer to the document for exact specifications by model.

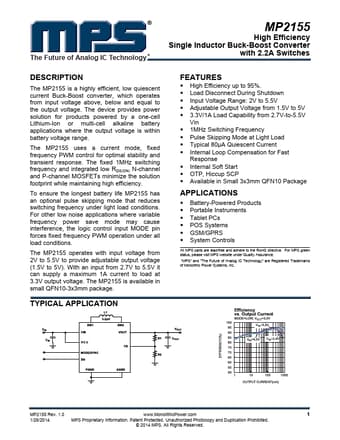

Additional preview pages of the MP2155GQ datasheet.

Product details

Description

The MP2155 is a highly efficient, low quiescent current Buck-Boost converter, which operates from input voltage above, below and equal to the output voltage.

Features

High Efficiency up to 95%.
Load Disconnect During Shutdown.
Input Voltage Range: 2V to 5.5V.
Adjustable Output Voltage from 1.5V to 5V.
3.3V/1A Load Capability from 2.7V-to-5.5V Vin.
1MHz Switching Frequency.
Pulse Skipping Mode at Light Load.
Typical 80μA Quiescent Current.
Internal Loop Compensation for Fast Response.
Internal Soft Start.
OTP, Hiccup SCP.
Available in Small 3x3mm QFN10.
