MP2155 - High Efficiency Single Inductor Buck-Boost Converter

Description

The MP2155 is a highly efficient, low quiescent current Buck-Boost converter, which operates from input voltage above, below and equal to the output voltage.

Features

  • High Efficiency up to 95%.
  • Load Disconnect During Shutdown.
  • Input Voltage Range: 2V to 5.5V.
  • Adjustable Output Voltage from 1.5V to 5V.
  • 3.3V/1A Load Capability from 2.7V-to-5.5V Vin.
  • 1MHz Switching Frequency.
  • Pulse Skipping Mode at Light Load.
  • Typical 80μA Quiescent Current.
  • Internal Loop Compensation for Fast Response.
  • Internal Soft Start.
  • OTP, Hiccup SCP.
  • Available in Small 3x3mm QFN10.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by MPS
  • MP2155GQ - High Efficiency Single Inductor Buck-Boost Converter
  • MP2151 - Synchronous Step-Down Converter
  • MP2151GTF - Synchronous Step-Down Converter
  • MP2153 - 5.5V 3A Sync Step-Down Converter
  • MP2158 - Synchronous Step Down Switcher
  • MP2158A - Synchronous Step-Down Converter
  • MP2158AGQH - Synchronous Step-Down Converter
  • MP2158GQH - Synchronous Step Down Switcher

Full PDF Text Transcription

Click to expand full text

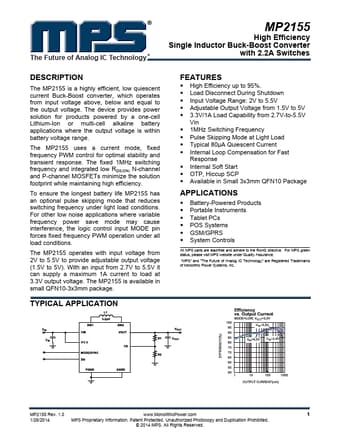

The Future of Analog IC Technology MP2155 High Efficiency Single Inductor Buck-Boost Converter with 2.2A Switches DESCRIPTION The MP2155 is a highly efficient, low quiescent current Buck-Boost converter, which operates from input voltage above, below and equal to the output voltage. The device provides power solution for products powered by a one-cell Lithium-Ion or multi-cell alkaline battery applications where the output voltage is within battery voltage range. The MP2155 uses a current mode, fixed frequency PWM control for optimal stability and transient response. The fixed 1MHz switching frequency and integrated low RDS(ON) N-channel and P-channel MOSFETs minimize the solution footprint while maintaining high efficiency.
