MP2115 - 2A Synchronous Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

MP2115 2A Synchronous Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MP2115

Datasheet Details

Part number	MP2115
Manufacturer	MPS
File Size	454.43 KB
Description	2A Synchronous Step-Down Converter
Datasheet	MP2115 Datasheet

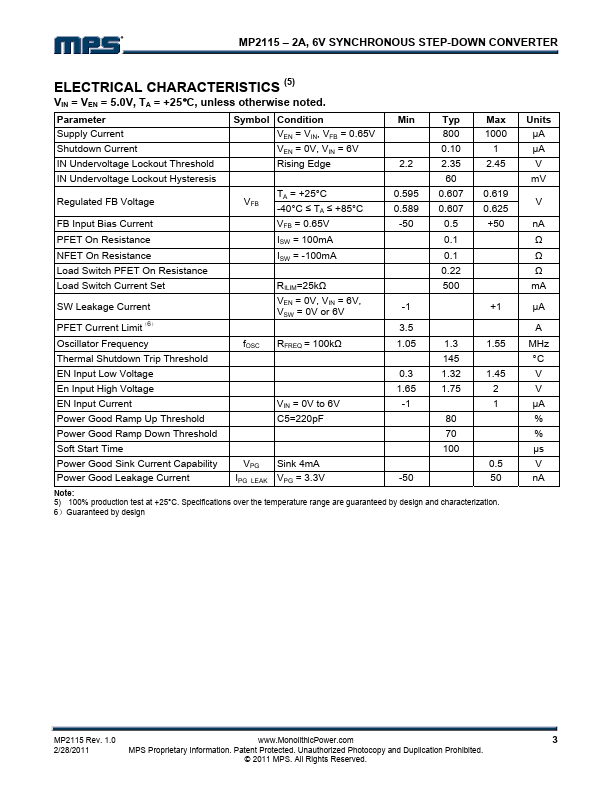

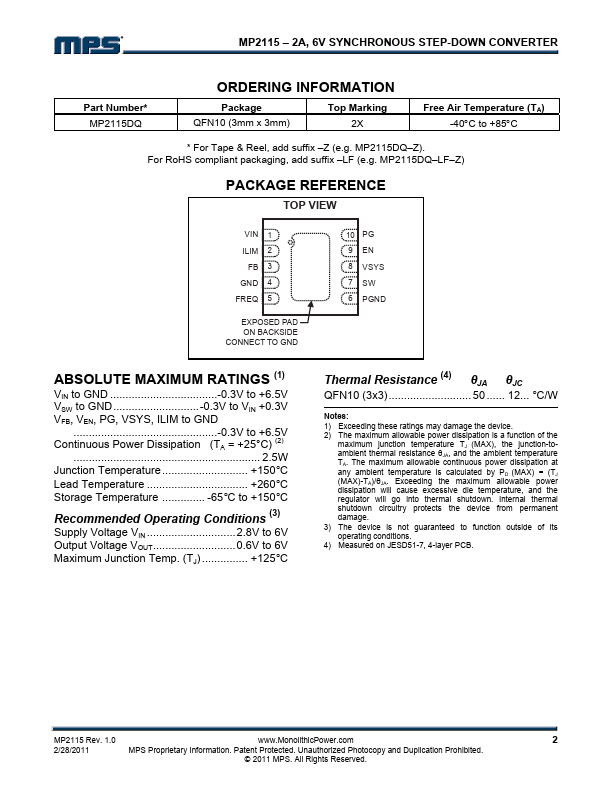

Additional preview pages of the MP2115 datasheet.

Product details

Description

The MP2115 is a high frequency, current mode, PWM step-down converter with integrated input current limit switch.

Features

High Efficiency: Up to 92%.
Programmable Switching Frequency from 0.7MHz-2MHz.
Programmable Input Current Limit.
2A Available Load Current.
2.8V to 6V Input Voltage Range.
Output Voltage as Low as 0.6V.
Current Mode Control.
Power Good Indicator.
Short Circuit Protection.
Thermal Fault Protection.
