MP21148 - Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

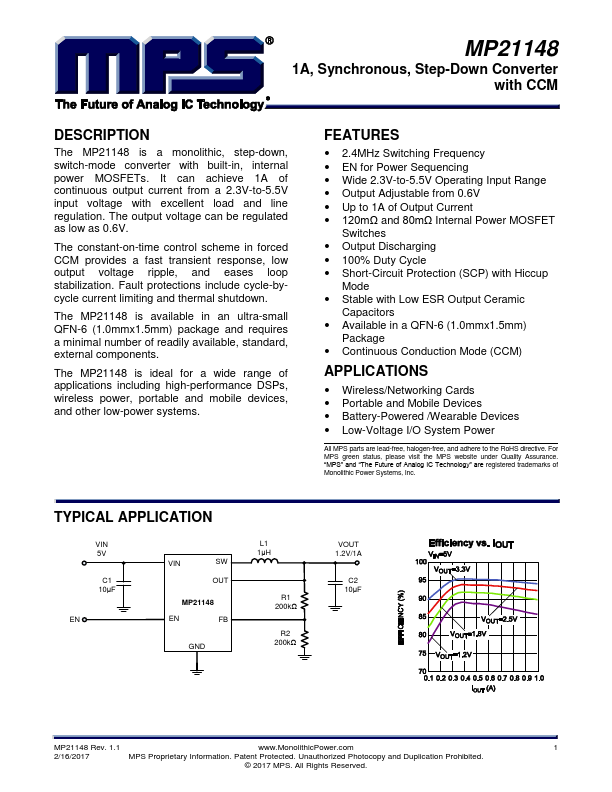

MP21148 Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MP21148

Datasheet Details

Part number	MP21148
Manufacturer	MPS
File Size	1.07 MB
Description	Step-Down Converter
Datasheet	MP21148 Datasheet
Additional preview pages of the MP21148 datasheet.

Product details

Description

The MP21148 is a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs.

Features

2.4MHz Switching Frequency.
EN for Power Sequencing.
Wide 2.3V-to-5.5V Operating Input Range.
Output Adjustable from 0.6V.
Up to 1A of Output Current.
120mΩ and 80mΩ Internal Power MOSFET Switches.
Output Discharging.
100% Duty Cycle.
Short-Circuit Protection (SCP) with Hiccup Mode.
Stable with Low ESR Output Ceramic Capacitors.
Available in a QFN-6 (1.0mmx1.5mm) Package.
Continuous Conduction Mode (CCM).
