SYS88000RKX-85 - 8M x 8 SRAM MODULE

Download the SYS88000RKX-85 datasheet PDF (SYS88000RKX-10 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 8m x 8 sram module.

Description

The SYS88000RKX is a plastic 64Mbit Static RAM Module housed in a standard 38 pin Single In-Line package organised as 8M x 8 with access times of 85,100, or 120 ns.

The module is constructed using sixteen 512Kx8 SRAMs in TSOPII packages mounted onto both sides of an FR4 epoxy substrate.

Features

  • es Access Times of 85/100/120 ns. Low Power Disapation: Operating 935 mW (Max. ) Standby -L Version 11 mW (Max. ) 5 Volt Supply ± 10%. Completely Static Operation. Equal Access and Cycle Times. Low Voltage VCC Data Retention. On-board Decoding & Capacitors. 38 Pin Single-In-Line package. Upgrade from SYS84000RKX (32Mbit).
  • Block Diagram Pin Definition A22 A20 Vcc WE D2 D3 D0 A1 A2 A3 A4 GND D5 A10 A11 A5 A13 A14 A19 CS A15 A16.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SYS88000RKX-10_MOSAIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SYS88000RKX-85
Manufacturer MOSAIC
File Size 118.50 KB
Description 8M x 8 SRAM MODULE
Datasheet download datasheet SYS88000RKX-85 Datasheet

📁 Similar Datasheet

  • SYS88782L - Low Power Laser Driver (Micrel)
  • SYS89850U - Precision Low-Power LVPECL Line Driver/Receiver (MICREL)
  • SYS02V12AMC - Single Line TVS Diode (Silergy)
  • SYS11U03 - Ultra-low Capacitance ESD/Surge Protection (Silergy)
  • SYS11U05 - Ultra-low Capacitance ESD/Surge Protection (Silergy)
  • SYS11U08 - Ultra-low Capacitance ESD/Surge Protection (Silergy)
  • SYS11U12 - Ultra-low Capacitance ESD/Surge Protection (Silergy)
  • SYS11U15 - Ultra-low Capacitance ESD/Surge Protection (Silergy)
  • SYS11U18 - Ultra-low Capacitance ESD/Surge Protection (Silergy)
  • SYS11U24 - Ultra-low Capacitance ESD/Surge Protection (Silergy)
Other Datasheets by MOSAIC

Full PDF Text Transcription

Click to expand full text

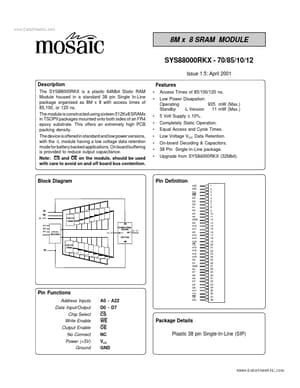

www.DataSheet4U.com 8M x 8 SRAM MODULE SYS88000RKX - 70/85/10/12 Issue 1.5: April 2001 Description The SYS88000RKX is a plastic 64Mbit Static RAM Module housed in a standard 38 pin Single In-Line package organised as 8M x 8 with access times of 85,100, or 120 ns. The module is constructed using sixteen 512Kx8 SRAMs in TSOPII packages mounted onto both sides of an FR4 epoxy substrate. This offers an extremely high PCB packing density. The device is offered in standard and low power versions, with the -L module having a low voltage data retention mode for battery backed applications. On board buffering is provided to reduce output capacitance. Note: CS and OE on the module, should be used with care to avoid on and off board bus contention. • • Features Access Times of 85/100/120 ns.
