SYS321000ZK-025 1M x 32 SRAM MODULE

The SYS321000ZK/LK is a industry standard plastic 32Mbit Static RAM Module housed in a 72 pin plastic SIMM & ZIP package organised as 1M x 32. The module utilises fast SRAMs housed in SOJ packages, and uses double sided surface mount techniques to achieve a very high density module. The module has f.

SYS321000ZK-025 Features

* Access Times of 12/15/20/25 ns. 72 Pin ZIP, SIMM package 5 Volt Supply ± 10%. Low Power Dissipation: Average (min cycle) Standby -L Version (CMOS)

* Completely Static Operation. On-board Supply Decoupling Capacitors. Equivalent to EDI part EDI8F321024C, IDT part IDT7MP412

SYS321000LK-012_MOSAIC.pdf

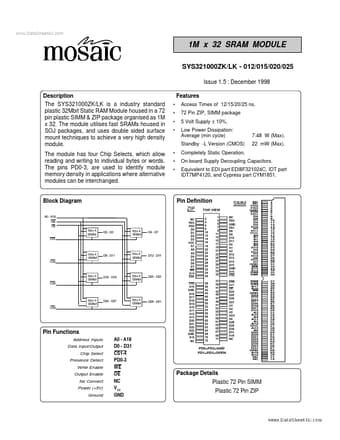

SYS321000ZK-025 Datasheet Preview — This datasheet PDF includes multiple part numbers: SYS321000ZK-025, SYS321000LK-012. Please refer to the document for exact specifications by model.

SYS321000ZK-025 Datasheet Preview Page 2

SYS321000ZK-025 Datasheet Preview Page 3

Datasheet Details

Part number:

SYS321000ZK-025, SYS321000LK-012

Manufacturer:

MOSAIC

File Size:

171.15 KB

Description:

1m x 32 sram module.

Note:

This datasheet PDF includes multiple part numbers: SYS321000ZK-025, SYS321000LK-012.
Please refer to the document for exact specifications by model.
