SYS321000ZK-020, SYS321000LK-012 - 1M x 32 SRAM MODULE

Datasheet Details

Part number	SYS321000ZK-020, SYS321000LK-012
Manufacturer	MOSAIC
File Size	171.15 KB
Description	1M x 32 SRAM MODULE
Datasheet	SYS321000LK-012_MOSAIC.pdf
Note	This datasheet PDF includes multiple part numbers: SYS321000ZK-020, SYS321000LK-012. Please refer to the document for exact specifications by model.

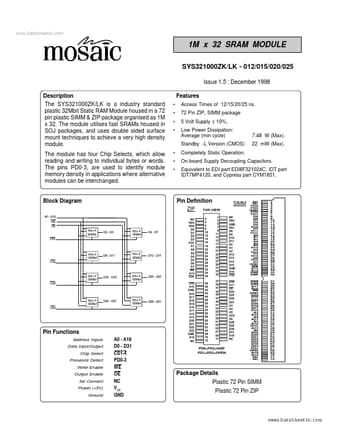

The SYS321000ZK/LK is a industry standard plastic 32Mbit Static RAM Module housed in a 72 pin plastic SIMM & ZIP package organised as 1M x 32.

es Access Times of 12/15/20/25 ns. 72 Pin ZIP, SIMM package 5 Volt Supply ± 10%. Low Power Dissipation: Average (min cycle) Standby -L Version (CMOS).
Completely Static Operation. On-board Supply Decoupling Capacitors. Equivalent to EDI part EDI8F321024C, IDT part IDT7MP4120, and Cypress part CYM1851. 7.48 W (Max). 22 mW (Max). Block Diagram A0 - A19 WE OE 1M x 4 SRAM CS1 D0 - D3 1M x 4 SRAM D4 - D7 Pin Definition ZIP NC PD3 PD0 D0 D1 D2 D3 VCC A7 A8 A9 D4 D5 D6 D7.
