MS6712L - Low Cost 4 Stereo Inputs and 4-Channel Outputs and Selectable Input Gain

MOSA

The MS6712L by MOSA is a Low Cost 4 Stereo Inputs and 4-Channel Outputs and Selectable Input Gain. Below is the official datasheet preview.

📥 Download Datasheet

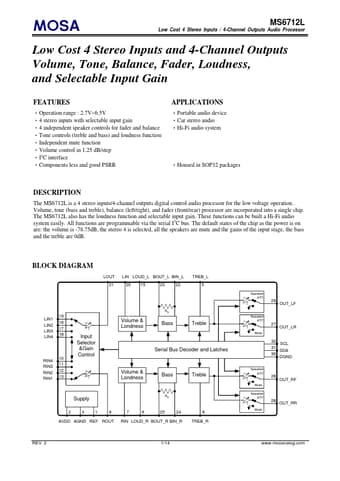

MS6712L Low Cost 4 Stereo Inputs and 4-Channel Outputs and Selectable Input Gain by MOSA - Datasheet Preview — Official preview page of the **MS6712L** Low Cost 4 Stereo Inputs and 4-Channel Outputs and Selectable Input Gain datasheet (MOSA).

Datasheet Details

Part number	MS6712L
Manufacturer	MOSA
File Size	534.15 KB
Description	Low Cost 4 Stereo Inputs and 4-Channel Outputs and Selectable Input Gain
Datasheet	MS6712L-MOSA.pdf
Additional preview pages of the MS6712L datasheet.

MS6712L Product details

Description

The MS6712L is a 4 stereo inputs/4-channel outputs digital control audio processor for the low voltage operation.

Features

Operation range : 2.7V~6.5V.
4 stereo inputs with selectable input gain.
4 independent speaker controls for fader and balance.
Tone controls (treble and bass) and loudness function.
Independent mute function.
Volume control in 1.25 dB/step.
I2C interface.
Components less and good PSRR.
