MS6002 - Rail-to-Rail Input/Output Amplifier

Download the MS6002 datasheet PDF. This datasheet also covers the MS6001 variant, as both devices belong to the same rail-to-rail input/output amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

MS6001/2/4 are single , dule, and quad rail-to-rail input and output amplifiers.

The amplifiers ‘s bandwidth is 1.2MHz(at VCC=5V), and phase margin is 65°.

The Supply Voltage Range is 1.8V to 5.0V.

Features

  • supply voltage range :1.8V to 5.0V.
  • operating temperature range :- 40℃ to 125℃.
  • supply current:40uA/Amp(1.8V).
  • phase margin:65°.
  • rail-to-rail input and output.
  • single , dule, and quad packages.
  • High ESD protect -HBM:5000V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS6001-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS6002
Manufacturer Ruimeng
File Size 926.37 KB
Description Rail-to-Rail Input/Output Amplifier
Datasheet download datasheet MS6002 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS60180 (MS60180 - MS60200) 60 Amp Schottky Rectifier Microsemi Corporation
MS60200 (MS60180 - MS60200) 60 Amp Schottky Rectifier Microsemi Corporation
MS60N60HGB3 MOSFET MASPOWER
MS60N60HGC1 MOSFET MASPOWER
MS614 Coin-type Manganese Silicon Rechargeable Lithium Batteries Panasonic

Other Datasheets by Ruimeng

Part Number Description
MS6002M Rail-to-Rail Input/Output Amplifier
MS6001 Rail-to-Rail Input/Output Amplifier
MS6004 Rail-to-Rail Input/Output Amplifier
MS6004S Rail-to-Rail Input/Output Amplifier
MS6031 Rail-to-Rail Input and Output Operational Amplifier

Full PDF Text Transcription

Click to expand full text

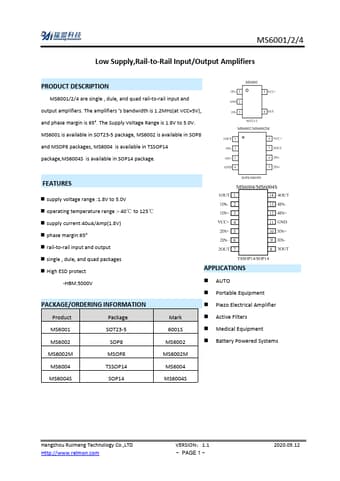

MS6001/2/4 Low Supply,Rail-to-Rail Input/Output Amplifiers PRODUCT DESCRIPTION MS6001/2/4 are single , dule, and quad rail-to-rail input and output amplifiers. The amplifiers ‘s bandwidth is 1.2MHz(at VCC=5V), and phase margin is 65°. The Supply Voltage Range is 1.8V to 5.0V. MS6001 is available in SOT23-5 package, MS6002 is available in SOP8 and MSOP8 packages, MS6004 is available in TSSOP14 package,MS6004S is available in SOP14 package. FEATURES  supply voltage range :1.8V to 5.0V  operating temperature range :- 40℃ to 125℃  supply current:40uA/Amp(1.
