MT3108, MT3108-MOS - N-Channel Powe MOSFET

MOS-TECH

📥 Download Datasheet

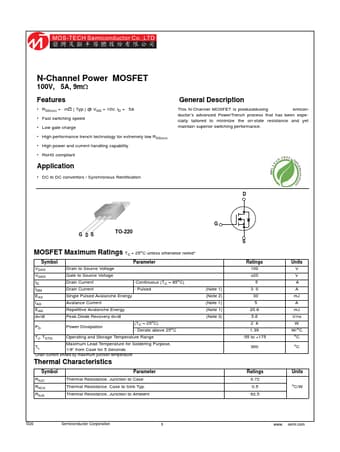

MT3108 Datasheet Preview — This datasheet PDF includes multiple part numbers: MT3108, MT3108-MOS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MT3108, MT3108-MOS
Manufacturer	MOS-TECH
File Size	414.08 KB
Description	N-Channel Powe MOSFET
Datasheet	MT3108-MOS-TECH.pdf
Note	This datasheet PDF includes multiple part numbers: MT3108, MT3108-MOS. Please refer to the document for exact specifications by model.

MT3108 Product details

Description

This N-Channel MOSFET is producedusing PRVWHFK Vemiconductor’s advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance. Symbol Parameter Ratings Units VDSS Drain to Source Voltage 100 V VGSS ID IDM EAS IAR EAR Gate to Source Voltage ±20 V Drain Current Drain Current -Continuous (TC = 85oC)

Features

RDS(on) = mΩ ( Typ. ) @ VGS = 10V, ID = 5A.
Fast switching speed.
Low gate charge.
High performance trench technology for extremely low RDS(on).
High power and current handling capability.
RoHS compliant.
