TD301D485H-A - Industrial Bus

MORNSUN

📥 Download Datasheet

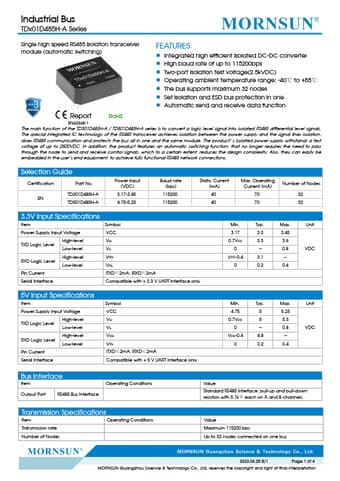

TD301D485H-A Datasheet Preview — Preview of TD301D485H-A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TD301D485H-A
Manufacturer	MORNSUN
File Size	750.11 KB
Description	Industrial Bus
Datasheet	TD301D485H-A-MORNSUN.pdf

TD301D485H-A Product details

Features

Integrated high efficient isolated DC-DC converter.
High baud rate of up to 115200bps.
Two-port isolation test voltage(2.5kVDC).
Operating ambient temperature range: -40℃ to +85℃.
The bus supports maximum 32 nodes.
Set isolation and ESD bus protection in one.
Automatic send and receive data function Report RoHS EN62368-1 The main function of the TD301D485H-A / TD501D485H-A series is to convert a logic level signal into isolated RS485 differential level sig.
