TD301MCAN - Single high-speed CAN isolated transceiver

Features

  • Two-port isolation test voltage(2.5kVDC).
  • High baud rate of up to 1 Mbps.
  • Operating ambient temperature range: -40℃ to +105℃.
  • Complies with ISO 11898-2 standard.
  • Bus timeout protection.
  • The bus supports maximum 110 nodes.
  • Compact size, standard DIP8 package EN62368-1 The TD301MCAN / TD501MCAN series’ main function is to convert TTL / CMOS level into isolated CAN bus differential level signals. The use of IC integrated technology allows for power isolation, si.

📥 Download Datasheet

Datasheet Details

Part number TD301MCAN
Manufacturer MORNSUN
File Size 1.26 MB
Description Single high-speed CAN isolated transceiver
Datasheet download datasheet TD301MCAN Datasheet

📁 Similar Datasheet

  • TD300 - 15V TRIPLE IGBT/MOS DRIVER (ST Microelectronics)
  • TD300A - Current Transducers (Topstek)
  • TD300A-SP1 - Current Transducers (Topstek)
  • TD3021 - Triac Driver (Solid State Optronic)
  • TD3023 - Triac Driver (Solid State Optronic)
  • TD3041 - Triac Driver (Solid State Optronic)
  • TD3042 - Triac Driver (Solid State Optronic)
  • TD3043 - Zero-Volt Switching Triac Driver (Solid State Optronics)
  • TD304BH - N-Channel Enhancement Mode MOSFET (UNIKC)
  • TD3052 - Random Switching Triac Driver (Solid State Optronics)
Other Datasheets by MORNSUN

Full PDF Text Transcription

Click to expand full text

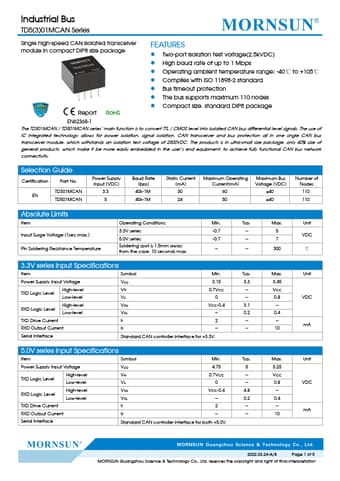

Industrial Bus TD5(3)01MCAN Series Single high-speed CAN isolated transceiver module in compact DIP8 size package Report RoHS FEATURES  Two-port isolation test voltage(2.5kVDC)  High baud rate of up to 1 Mbps  Operating ambient temperature range: -40℃ to +105℃  Complies with ISO 11898-2 standard  Bus timeout protection  The bus supports maximum 110 nodes  Compact size, standard DIP8 package EN62368-1 The TD301MCAN / TD501MCAN series’ main function is to convert TTL / CMOS level into isolated CAN bus differential level signals. The use of IC integrated technology allows for power isolation, signal isolation, CAN transceiver and bus protection all in one single CAN bus transceiver module, which withstands an isolation test voltage of 2500VDC.
