MSA0505MD-3W, MSA0505D-3W - (MSA Series) DUAL/SINGLE OUTPUT DIP DC-DC CONVERTER

MORNSUN

📥 Download Datasheet

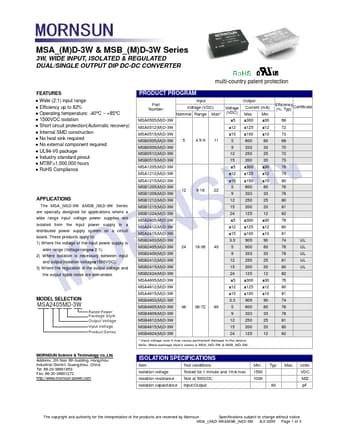

MSA0505MD-3W Datasheet Preview — This datasheet PDF includes multiple part numbers: MSA0505MD-3W, MSA0505D-3W. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSA0505MD-3W, MSA0505D-3W
Manufacturer	MORNSUN
File Size	156.65 KB
Description	(MSA Series) DUAL/SINGLE OUTPUT DIP DC-DC CONVERTER
Datasheet	MSA0505D-3W_MORNSUN.pdf
Note	This datasheet PDF includes multiple part numbers: MSA0505MD-3W, MSA0505D-3W. Please refer to the document for exact specifications by model.

MSA0505MD-3W Product details

Features

Wide (2:1) input range.
Efficiency up to 82%.
Operating temperature: -40°C ~ +85°C.
1500VDC isolation.
Short circuit protection(Automatic recovery).
Internal SMD construction.
No heat sink required.
No external component required.
UL94-V0 package.
Industry standard pinout.
MTBF>1,000,000 hours.
RoHS Compliance.
