MSA0385 - Cascadable Silicon Bipolar MMIC Amplifier

📥 Download Datasheet

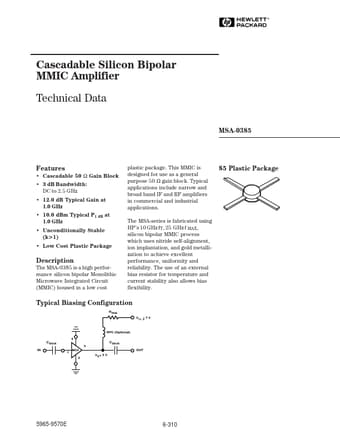

MSA0385 Datasheet Preview — Preview of MSA0385 PDF

Datasheet Details

Part number	MSA0385
Manufacturer	HP
File Size	52.26 KB
Description	Cascadable Silicon Bipolar MMIC Amplifier
Datasheet	MSA0385_HP.pdf

MSA0385 Product details

Description

The MSA-0385 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost Typical Biasing Configuration R bias VCC > 7 V RFC (Optional) 4 C block 3 IN 1 MSA C block OUT Vd = 5 V 2 5965-9570E 6-310 MSA-0385 Absolute Maximum Ratings Parameter Device Current Power Dissipation[2,3] RF Input Power Junction Temperature Storage Temperature Absolute Maximum[1] 70 mA 400 mW +13 dBm 150°C 65 to 150°C Thermal Resistance[2,4]: θjc = 105°C/W Notes

Features

Cascadable 50 Ω Gain Block.
3 dB Bandwidth: DC to 2.5 GHz.
12.0 dB Typical Gain at 1.0␣ GHz.
10.0 dBm Typical P1 dB at 1.0␣ GHz.
Unconditionally Stable (k>1).
Low Cost Plastic Package plastic package. This MMIC is designed for use as a general purpose 50 Ω gain block. Typical.
