G2415S-2WR2, G2405S-2WR2 DC/DC Converter

G2415S-2WR2 Description

DC/DC Converter G_S-2WR2 & H_S-2WR2 Series 2W isolated DC-DC converter with 4.2k VAC/6k VDC .
of Reflected ripple current testing method.

G2415S-2WR2 Features

* Fixed input voltage and unregulated single or dual output
* SIP package High efficiency up to 84%
* Reinforced insulation
* Patient leakage current 2µA max.
* I/O isolation test voltage 4.2k VAC or 6k VDC
* Operating ambient temperature: -40℃ ~ +85℃
* Internal s

G2415S-2WR2 Applications

* where extremely high isolation, low insulation capacitor with low leakage current in a compact package size is required. They are widely used in applications such as medical, electrical grid, IGBT driver circuits and similar where: 1. The voltage of the input power supply is relatively stable with a

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: G2415S-2WR2, G2405S-2WR2. Please refer to the document for exact specifications by model.

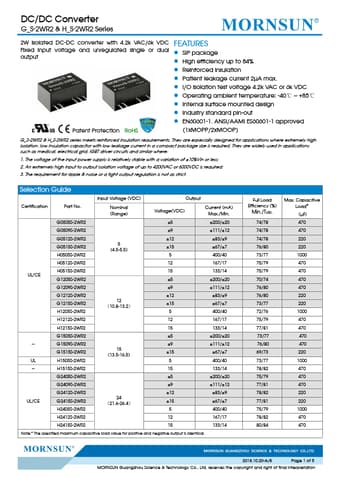

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
G2415S-2WR2, G2405S-2WR2
Manufacturer
MORNSUN
File Size
1.08 MB
Datasheet
G2405S-2WR2-MORNSUN.pdf
Description
DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: G2415S-2WR2, G2405S-2WR2.
Please refer to the document for exact specifications by model.
