G2415D-2W, G2405D-2W DUAL/SINGLE OUTPUT DC-DC CONVERTER

G2415D-2W Description

G_D-2W & H_D-2W Series 2W, FIXED INPUT, 6000V ISOLATED & UNREGULATED DUAL/SINGLE OUTPUT DC-DC CONVERTER RoHS PART NUMBER SYSTEM G0505D-2W Rated Power .

G2415D-2W Features

* Efficiency up to 81%
* Up to 6KVDC Isolation
* DIP Package
* Low Isolation Capacitance
* Operating Temperature Range： -40°C to +85°C
* Low Temperature rise
* Internal SMD Construction
* No External Component Required
* Continuous short circuit protection
* I

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: G2415D-2W, G2405D-2W. Please refer to the document for exact specifications by model.

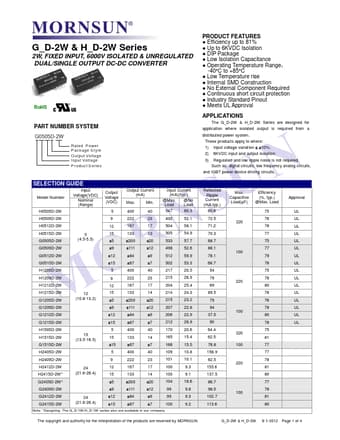

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
G2415D-2W, G2405D-2W
Manufacturer
MORNSUN
File Size
401.25 KB
Datasheet
G2405D-2W-MORNSUN.pdf
Description
DUAL/SINGLE OUTPUT DC-DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: G2415D-2W, G2405D-2W.
Please refer to the document for exact specifications by model.
