MM1177 - Charge and discharge control for coin-type lithium batteries and manganese dioxide lithium batteries

Name: MM1177
SKU: MM1177-506978

MITSUMI ELECTRIC

The MM1177 by MITSUMI ELECTRIC is a Charge and discharge control for coin-type lithium batteries and manganese dioxide lithium batteries. Below is the official datasheet preview.

📥 Download Datasheet

MM1177 Charge and discharge control for coin-type lithium batteries and manganese dioxide lithium batteries by MITSUMI ELECTRIC - Datasheet Preview — Official preview page of the **MM1177** Charge and discharge control for coin-type lithium batteries and manganese dioxide lithium batteries datasheet (MITSUMI ELECTRIC).

Datasheet Details

Part number	MM1177
Manufacturer	MITSUMI ELECTRIC
File Size	78.18 KB
Description	Charge and discharge control for coin-type lithium batteries and manganese dioxide lithium batteries
Datasheet	MM1177_MITSUMIELECTRIC.pdf

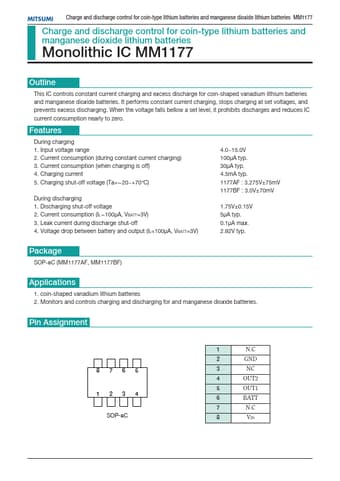

Additional preview pages of the MM1177 datasheet.

MM1177 Product details

Features

During charging 1. Input voltage range 2. Current consumption (during constant current charging) 3. Current consumption (when charging is off) 4. Charging current 5. Charging shut-off voltage (Ta=-20~+70°C) During discharging 1. Discharging shut-off voltage 2. Current consumption (IL-100µA, VBATT=3V) 3. Leak current during discharge shut-off 4. Voltage drop between battery and output (IL=100µA, VBATT=3V) 4.0~15.0V 100µA typ. 30µA typ. 4.5mA typ. 1177AF : 3.275V±75mV 1177BF : 3.0V±70mV 1.75V±0.15.
