MM1109 - No-adjustment Sync Separator Monolithic IC

Description

Pin no.

1 2 Pin name VCC SC Internal equivalent circuit diagram Function Power supply voltage pin.

Impresses 5V.

Features

  • 1. 2. 3. 4. 5. 6. 7. 8. Low current consumption 4.4mA typ. Open collector output Built-in 3V regulator handles power supply ripple Built-in capacitor for vertical sync separation Time from vertical signal to H. SYNC output re-sync reduced (relative to LVA519) Supports both PAL and NTSC formats Sync separation level can be adjusted with external constants Composite sync signal output pin Package SIP-9B (MM1109XS).

📥 Download Datasheet

Datasheet Details

Part number MM1109
Manufacturer Unknown Manufacturer
File Size 128.71 KB
Description No-adjustment Sync Separator Monolithic IC
Datasheet download datasheet MM1109 Datasheet

📁 Similar Datasheet

  • MM1106 - System Reset (Mitsumi Electronics)
  • MM1120 - 2-Input 2-Output Video Switch (Mitsumishi)
  • MM1124 - Bass Amplifier (MITSUMI ELECTRIC)
  • MM1134 - (MM1xxx) System Reset (Mitsumi Electric)
  • MM1135 - (MM1135 / MM1136) System Reset (with built-in watchdog timer) Monolithic IC (Mitsumi Electronics)
  • MM1136 - (MM1135 / MM1136) System Reset (with built-in watchdog timer) Monolithic IC (Mitsumi Electronics)
  • MM1140 - 6-Input 1-Output Video Switch (Mitsumi Electronics)
  • MM1142 - System Reset (Mitsumi Electronics)
  • MM1165 - (MM1065 / MM1165) Ultra-Low Power Consumption Low-Saturation Three-Pin Regulators (Mitsumi Electronics)
  • MM1174 - (MM1025 / MM1174) System Reset (with battery back-up) Monolithic IC (MITSUMI ELECTRIC)
Other Datasheets by ETC
  • MM1104 - Monolithic IC
  • MM1108 - Monolithic IC
  • MM1111 - 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch
  • MM1112 - 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch
  • MM1113 - 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch
  • MM1114 - 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch
  • MM1115 - 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch
  • MM1116 - 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch

Full PDF Text Transcription

Click to expand full text

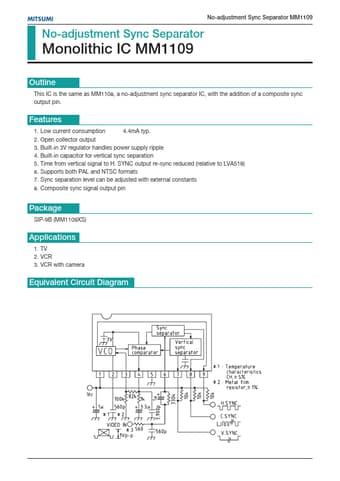

MITSUMI No-adjustment Sync Separator MM1109 No-adjustment Sync Separator Monolithic IC MM1109 Outline This IC is the same as MM1108, a no-adjustment sync separator IC, with the addition of a composite sync output pin. Features 1. 2. 3. 4. 5. 6. 7. 8. Low current consumption 4.4mA typ. Open collector output Built-in 3V regulator handles power supply ripple Built-in capacitor for vertical sync separation Time from vertical signal to H. SYNC output re-sync reduced (relative to LVA519) Supports both PAL and NTSC formats Sync separation level can be adjusted with external constants Composite sync signal output pin Package SIP-9B (MM1109XS) Applications 1. TV 2. VCR 3. VCR with camera Equivalent Circuit Diagram MITSUMI No-adjustment Sync Separator MM1109 Pin Description Pin no.
