S5817 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

S5817 Description

MASTER INSTRUMENT CORPORATION SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER S5817 THRU S5819 VOLTAGE RANGE 20 to 40 Volts Forward Current 1.0 Amperes FE.

S5817 Applications

* l Metal to silicon rectifier. Majority carrier conduction l Low power loss, high efficiency l High current capability, Low forward Voltage drop l High surge capability l For use in low voltage, high frequency inventers, Free wheeling, and polarity protection applications l High temperature soldering

📥 Download Datasheet

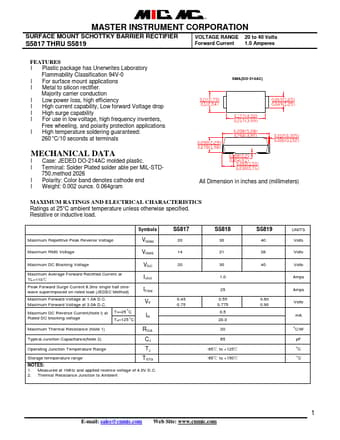

Preview of S5817 PDF
datasheet Preview Page 2

Datasheet Details

Part number
S5817
Manufacturer
MIC
File Size
93.14 KB
Datasheet
S5817-MIC.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
