S5818FA - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Download the S5818FA datasheet PDF. This datasheet also covers the S5817FA variant, as both devices belong to the same surface mount schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • z Low leakage z Low forward voltage drop Pb Lead-free z High current capability z For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S5817FA-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
S5818 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER MIC
S581-4000-14 9.9-11.2Gb/s Optical Modulator Driver TriQuint Semiconductor
S5812 DIGITAL AUDIO DATA TRANSFORMER Bothhandusa
S5817 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER MIC
S5819 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER MIC

Other Datasheets by Galaxy Microelectronics

Part Number Description
S5817FA SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
S5819FA SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

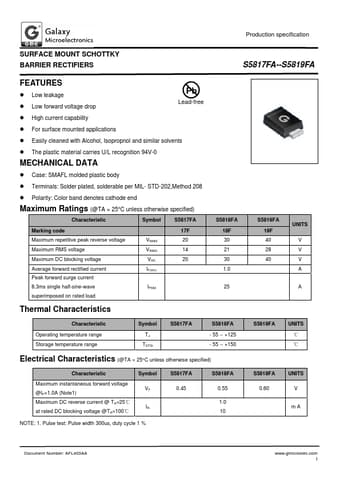

Production specification SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS S5817FA--S5819FA FEATURES z Low leakage z Low forward voltage drop Pb Lead-free z High current capability z For surface mounted applications z Easily cleaned with Alcohol, Isopropnol and similar solvents z The plastic material carries U/L recognition 94V-0 MECHANICAL DATA z Case: SMAFL molded plastic body z Terminals: Solder plated, solderable per MIL- STD-202,Method 208 z Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol S5817FA Marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Average forward rectified current Peak forward surge current 8.
