1N4757A - HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS

Download the 1N4757A datasheet PDF. This datasheet also covers the 1N4728A variant, as both devices belong to the same hermetically sealed glass zener voltage regulators family and are provided as variant models within a single manufacturer datasheet.

Features

  • Zener Voltage Range 3.3 to 56 Volts.
  • Through-Hole Device Type Mounting.
  • DO-35 Package (JEDEC).
  • Hermetically Sealed Glass.
  • Compression Bonded Construction.
  • All external surfaces are Corrosion Resistant And Leads Are Readily Solderable RoHS Compliant.
  • Solder Hot Dip Tin (Sn) Terminal Finish Cathode Indicated By Polanity Band.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4728A-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N4757A
Manufacturer MIC
File Size 461.49 KB
Description HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS
Datasheet download datasheet 1N4757A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4757A Zener Diode Formosa MS
1N4757A Zener Diodes ON Semiconductor
1N4757A Zener Diodes Vishay
1N4757A SILICON ZENER DIODES Central Semiconductor
1N4757A 1W Zener Diodes TAITRON

Other Datasheets by MIC

Part Number Description
1N4750A HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS
1N4751A HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS
1N4752A HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS
1N4753A HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS
1N4754A HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

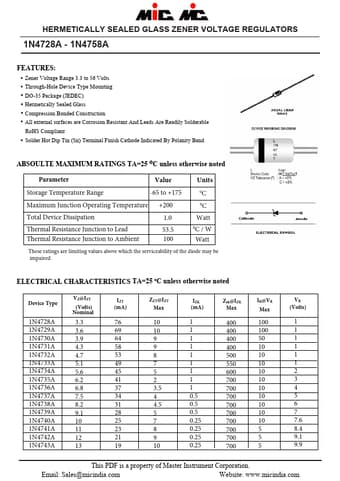

HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS 1N4728A - 1N4758A FEATURES: ▪ Zener Voltage Range 3.3 to 56 Volts ▪ Through-Hole Device Type Mounting ▪ DO-35 Package (JEDEC) ▪ Hermetically Sealed Glass ▪ Compression Bonded Construction ▪ All external surfaces are Corrosion Resistant And Leads Are Readily Solderable RoHS Compliant ▪ Solder Hot Dip Tin (Sn) Terminal Finish Cathode Indicated By Polanity Band ABSOULTE MAXIMUM RATINGS TA=25 oC unless otherwise noted Parameter Value Units Storage Temperature Range -65 to +175 0C Maximum Junction Operating Temperature +200 0C Total Device Dissipation Thermal Resistance Junction to Lead Thermal Resistance Junction to Ambient 1.0 Watt 53.
