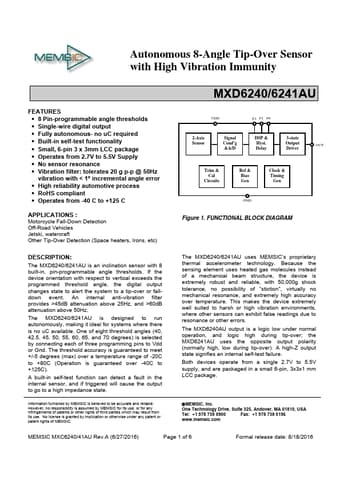

Description
Autonomous 8-Angle Tip-Over Sensor with High Vibration Immunity MXD6240/6241AU .
The MXD6240/6241AU is an inclination sensor with 8 built-in, pin-programmable angle thresholds.
Features
* 8 Pin-programmable angle thresholds
* Single-wire digital output
* Fully autonomous- no uC required
* Built-in self-test functionality
* Small, 6-pin 3 x 3mm LCC package
* Operates from 2.7V to 5.5V Supply
* No sensor resonance
* Vibration filter: tolerates 20 g p-p
Applications
* : Motorcycle Fall-Down Detection Off-Road Vehicles Jetski, watercraft Other Tip-Over Detection (Space heaters, Irons, etc)
VDD
P2 P1 P0
2-Axis Sensor
Signal Cond’g &A/D
DSP & Hyst. Delay
3-state Output Driver
OUT
Trim & Cal
Circuits
Ref & Bias Gen
Clock & Timing
Gen
GND
Figure 1. FUNCTION
