MXD1811, MXD1810 Low-Power uP Reset Circuits

Maxim Integrated

Description

MXD1810 *MXD1813/ MXD1815 *MXD1818 Low-Power μP Reset Circuits in 3-Pin SC70/SOT23 General .
The MXD1810. MXD1813/MXD1815. MXD1818 family of microprocessor (μP) reset circuits monitor power supplies in μP and digital systems.

📥 Download Datasheet

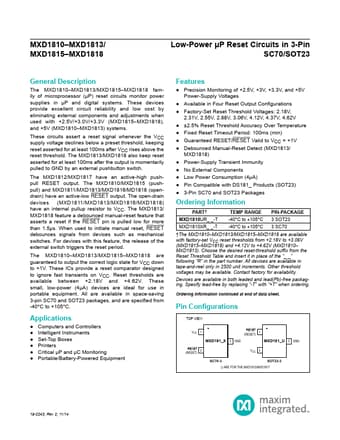

MXD1811 Datasheet Preview — This datasheet PDF includes multiple part numbers: MXD1811, MXD1810. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MXD1811, MXD1810
Manufacturer: Maxim Integrated ↗
File Size: 1.06 MB
Datasheet: MXD1810-MaximIntegrated.pdf
Description: Low-Power uP Reset Circuits
Note: This datasheet PDF includes multiple part numbers: MXD1811, MXD1810.
Please refer to the document for exact specifications by model.

Features

* Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages
* Available in Four Reset Output Configurations
* Factory-Set Reset Threshold Voltages: 2.18V, 2.31V, 2.55V, 2.88V, 3.06V, 4.12V, 4.37V, 4.62V
* ±2.5% Reset Threshold Accuracy Over Temperat

Applications

* Computers and Controllers
* Intelligent Instruments
* Set-Top Boxes
* Printers
* Critical μP and μC Monitoring
