SFR604, SFR601 - SOFT FAST RECOVERY RECTIFIER

The SFR604 by MEI SEMI is a SOFT FAST RECOVERY RECTIFIER. Below is the official datasheet preview.

SFR604 SOFT FAST RECOVERY RECTIFIER by MEI SEMI - Datasheet Preview — Official preview page of the **SFR604** SOFT FAST RECOVERY RECTIFIER datasheet (MEI SEMI).

Datasheet Details

Part number	SFR604, SFR601
Manufacturer	MEI SEMI
File Size	511.97 KB
Description	SOFT FAST RECOVERY RECTIFIER
Datasheet	SFR601-MEISEMI.pdf
Note	This datasheet PDF includes multiple part numbers: SFR604, SFR601. Please refer to the document for exact specifications by model.

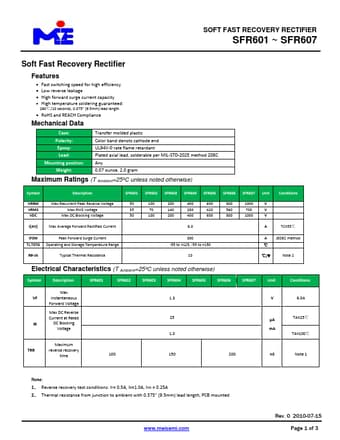

Additional preview pages of the SFR604 datasheet.

SFR604 Product details

Description

SFR601 SFR602 SFR603 SFR604 SFR605 SFR606 SFR607 Unit Conditions VRRM VRMS VDC Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 V I(AV) Max Average Forward Rectified Current 6.0 A TC=55℃ IFSM Peak Forward Surge Current TJ,TSTG Operating an

Features

Fast switching speed for high efficiency.
Low reverse leakage.
High forward surge current capacity.
High temperature soldering guaranteed: 260℃/10 seconds, 0.375” (9.5mm) lead length.
RoHS and REACH Compliance Mechanical Data Case: Polarity: Epoxy: Lead: Mounting position: Weight: Transfer molded plastic Color band denots cathode end UL94V-0 rate flame retardant Plated axial lead, solderable per MIL-STD-202E method 208C Any 0.07 ounce, 2.0 gram Maximum Ratings (T Am.
