2SB647-D, 2SB647-B - PNP Transistor

Name: 2SB647-D
SKU: 2SB647-D-1140939

MCC

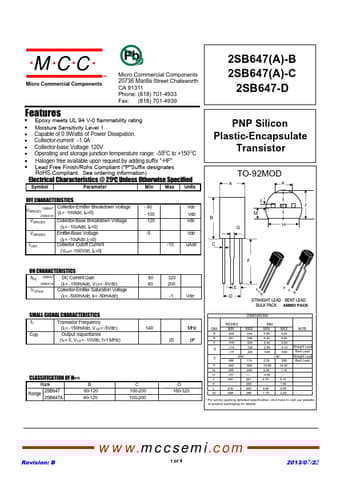

The 2SB647-D by MCC is a PNP Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SB647-D, 2SB647-B
Manufacturer	MCC
File Size	713.51 KB
Description	PNP Transistor
Datasheet	2SB647-B-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: 2SB647-D, 2SB647-B. Please refer to the document for exact specifications by model.
Additional preview pages of the 2SB647-D datasheet.

Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Capable of 0.9Watts of Power Dissipation.
Collector-current -1.0A.
Collector-base Voltage 120V.
Operating and storage junction temperature range: -55OC to +150OC.
Halogen free available upon request by adding suffix "-HF".
Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS Compliant. See ordering information) Electrical Characteristics @ 25O.
