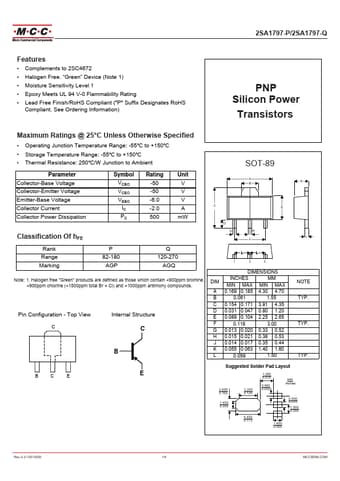

2SA1797-Q, 2SA1797-P - PNP Silicon Power Transistors

Datasheet Details

Part number	2SA1797-Q, 2SA1797-P
Manufacturer	MCC
File Size	886.69 KB
Description	PNP Silicon Power Transistors
Datasheet	2SA1797-P-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: 2SA1797-Q, 2SA1797-P. Please refer to the document for exact specifications by model.

Complements to 2SC4672.
Halogen Free. “Green” Device (Note 1).
Moisture Sensitivity Level 1.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) PNP Silicon Power Transistors Maximum Ratings @ 25°C Unless Otherwise Specified.
Operating Junction Temperature Range: -55℃ to +150℃.
Storage Temperature Range: -55℃ to +150℃.
Thermal Resista.
