2SA1797 - Power Transistor

Features

  • 1) Low saturation voltage. VCE (sat) =.
  • 0.35V (Max. ) at IC / IB =.
  • 1A / 50mA. 2) Excellent DC current gain characteristics. 3) Complements the 2SC4672. zDimensions (Unit : mm) MPT3 4.5 1.6 1.5 2.5 0.5 4.0 zPackaging specifications Type Package hFE Marking ∗ Code Basic ordering unit (pieces) ∗Denotes hFE 2SA1797 MPT3 PQ AG T100 1000 (1)Base (2)Collector (3)Emitter (1) (2) (3) 0.4 0.5 1.5 1.5 3.0 0.4 zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage.

📥 Download Datasheet

Datasheet Details

Part number 2SA1797
Manufacturer ROHM
File Size 160.11 KB
Description Power Transistor
Datasheet download datasheet 2SA1797 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1797 PNP Transistor SeCoS
2SA1797 Plastic-Encapsulate Transistors WILLAS
2SA1797 Power Transistor Kexin
2SA1797 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SA1797 PNP Transistor JCET

Other Datasheets by ROHM

Part Number Description
2SA1727 High-voltage Switching Transistor
2SA1757 PNP Transistor
2SA1759 High-voltage Switching Transistor
2SA1774 General Purpose Transistor
2SA1774EB PNP -150mA -50V General Purpose Transistors

Full PDF Text Transcription

Click to expand full text

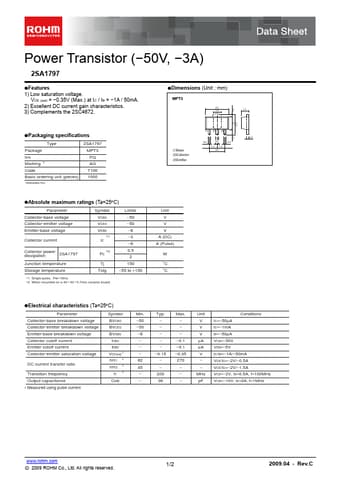

Power Transistor (−50V, −3A) 2SA1797 zFeatures 1) Low saturation voltage. VCE (sat) = −0.35V (Max.) at IC / IB = −1A / 50mA. 2) Excellent DC current gain characteristics. 3) Complements the 2SC4672. zDimensions (Unit : mm) MPT3 4.5 1.6 1.5 2.5 0.5 4.0 zPackaging specifications Type Package hFE Marking ∗ Code Basic ordering unit (pieces) ∗Denotes hFE 2SA1797 MPT3 PQ AG T100 1000 (1)Base (2)Collector (3)Emitter (1) (2) (3) 0.4 0.5 1.5 1.5 3.0 0.4 zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation 2SA1797 Junction temperature Storage temperature Symbol VCBO VCEO VEBO ∗1 IC PC ∗2 Tj Tstg Limits −50 −50 −6 −3 −6 0.
