1SS226 - 150mW SWITCHING DIODE

Features

  • Low Leakage Current.
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Halogen Free. “Green” Device (Note 1).
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance: 833°C/W Junction to Ambient 150mW Switching Diodes MCC Part.

📥 Download Datasheet

📁 Similar Datasheet

  • 1SS226 - Switching Diodes (Toshiba Semiconductor)
  • 1SS226 - SILICON EPITAXIAL PLANAR DIODE (EIC)
  • 1SS226 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • 1SS226 - SILICON EPITAXIAL PLANAR DIODE (SEMTECH)
  • 1SS226 - Switching Diodes (LGE)
  • 1SS226 - SWITCHING DIODE (JCET)
  • 1SS226 - DIODE (WEJ)
  • 1SS226 - Surface Mount Switching Diodes (WEITRON)
  • 1SS226 - Plastic-Encapsulate Diodes (UPM)
  • 1SS220 - (1SS220 / 1SS221) SILICON SWITCHING DIODES (NEC)
Other Datasheets by MCC
  • 1SS244 - 300mW Switching Diode
  • 1SS133 - High Speed Switching Diode
  • 1SS136 - High Speed Switching Diode
  • 1SS181 - High Speed Switching Diodes
  • 1SS184 - High Speed Switching Diodes
  • 1SS193 - 150mW Switching Diodes
  • 1SS196 - Switching Diodes
  • 1SS355 - Switching Diode

Full PDF Text Transcription

Click to expand full text

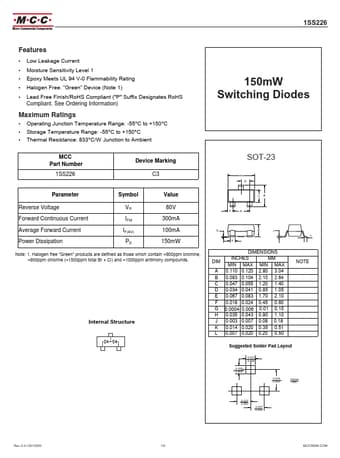

1SS226 Features • Low Leakage Current • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free. “Green” Device (Note 1) • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 833°C/W Junction to Ambient 150mW Switching Diodes MCC Part Number 1SS226 Device Marking C3 Parameter Symbol Value Reverse Voltage Forward Continuous Current Average Forward Current Power Dissipation VR IFM IF(AV) PD 80V 300mA 100mA 150mW Note: 1.
