MX6501T Push-Pull Transformer Driver

MX6501T Description

MX6501T Push-Pull Transformer Driver for Isolated Power Supplies General .
The MX6501T is a monolithic oscillator or power-driver, specifically designed for small form factor, isolated power supplies in isolated interface app.

MX6501T Features

* Wide operating input voltage range VIN: 3.3V to 5V
* Push-Pull driver for small transformer
* Low ripple on rectifier output permits small output capacitors

MX6501T Applications

* The device drives a low profile, center tapped transformer primary from 3.3V to 5V DC power supply. The secondary can be wound to provide any isolated voltage based on transformer turns ratio. The MX6501T consists of an oscillator followed by a gate drive circuit that provides the complementary out

📥 Download Datasheet

Preview of MX6501T PDF

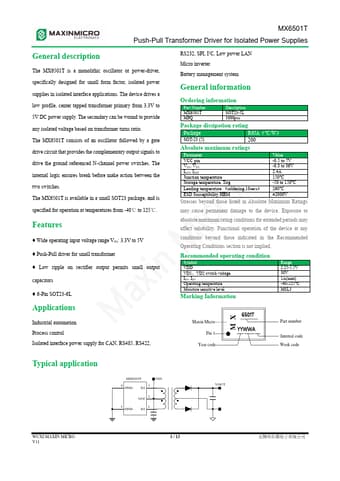

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX6501T
Manufacturer
MAXINMICRO
File Size
1.16 MB
Datasheet
MX6501T-MAXINMICRO.pdf
Description
Push-Pull Transformer Driver
