LM102202-Q-C-301, LM102202-Q-A-301-MA - PIN Diode Limiter

MA-COM

The LM102202-Q-C-301 by MA-COM is a PIN Diode Limiter. Below is the official datasheet preview.

📥 Download Datasheet

LM102202-Q-C-301 PIN Diode Limiter by MA-COM - Datasheet Preview — Official preview page of the **LM102202-Q-C-301** PIN Diode Limiter datasheet (MA-COM).

Datasheet Details

Part number	LM102202-Q-C-301, LM102202-Q-A-301-MA
Manufacturer	MA-COM
File Size	946.39 KB
Description	PIN Diode Limiter
Datasheet	LM102202-Q-A-301-MA-COM.pdf
Note	This datasheet PDF includes multiple part numbers: LM102202-Q-C-301, LM102202-Q-A-301-MA. Please refer to the document for exact specifications by model.

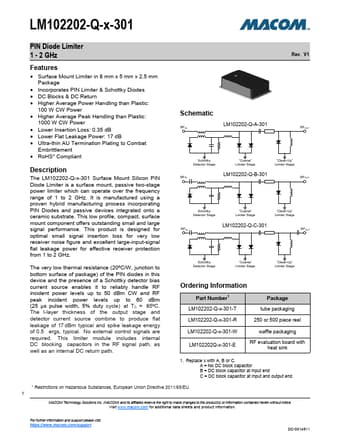

Additional preview pages of the LM102202-Q-C-301 datasheet.

LM102202-Q-C-301 Product details

Description

The LM102202-Q-x-301 Surface Mount Silicon PIN Diode Limiter is a surface mount, passive two-stage power limiter which can operate over the frequency range of 1 to 2 GHz.

Features

Surface Mount Limiter in 8 mm x 5 mm x 2.5 mm Package.
Incorporates PIN Limiter & Schottky Diodes.
DC Blocks & DC Return.
Higher Average Power Handling than Plastic: 100 W CW Power.
Higher Average Peak Handling than Plastic: 1000 W CW Power.
Lower Insertion Loss: 0.35 dB.
Lower Flat Leakage Power: 17 dB.
Ultra-thin AU Termination Plating to Combat Embrittlement.
RoHS.
Compliant.
