LM102202-Q-B-301 - PIN Diode Limiter

Download the LM102202-Q-B-301 datasheet PDF. This datasheet also covers the LM102202-Q-A-301-MA variant, as both devices belong to the same pin diode limiter family and are provided as variant models within a single manufacturer datasheet.

Description

The LM102202-Q-x-301 Surface Mount Silicon PIN Diode Limiter is a surface mount, passive two-stage power limiter which can operate over the frequency range of 1 to 2 GHz.

Features

  • Surface Mount Limiter in 8 mm x 5 mm x 2.5 mm Package.
  • Incorporates PIN Limiter & Schottky Diodes.
  • DC Blocks & DC Return.
  • Higher Average Power Handling than Plastic: 100 W CW Power.
  • Higher Average Peak Handling than Plastic: 1000 W CW Power.
  • Lower Insertion Loss: 0.35 dB.
  • Lower Flat Leakage Power: 17 dB.
  • Ultra-thin AU Termination Plating to Combat Embrittlement.
  • RoHS.
  • Compliant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM102202-Q-A-301-MA-COM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LM102202-Q-C-301 Surface Mount PIN Diode Limiter Aeroflex
LM102 LM102/LM302 Voltage Followers National Semiconductor
LM102A Middle-Power LED Samsung
LM10 Operational Amplifier/Voltage National Semiconductor
LM10 Low Power Op Amp Linear Technology

Other Datasheets by MACOM Technology Solutions

Part Number Description
LM102202-Q-A-301 PIN Diode Limiter
LM102202-Q-C-301 PIN Diode Limiter
LM102202-H-C-301 PIN Diode Limiter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

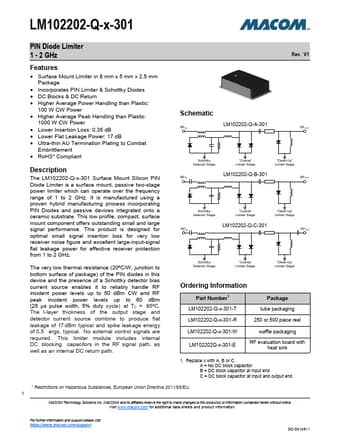

LM102202-Q-x-301 PIN Diode Limiter 1 - 2 GHz Rev. V1 Features  Surface Mount Limiter in 8 mm x 5 mm x 2.5 mm Package  Incorporates PIN Limiter & Schottky Diodes  DC Blocks & DC Return  Higher Average Power Handling than Plastic: 100 W CW Power  Higher Average Peak Handling than Plastic: 1000 W CW Power  Lower Insertion Loss: 0.35 dB  Lower Flat Leakage Power: 17 dB  Ultra-thin AU Termination Plating to Combat Embrittlement  RoHS* Compliant Description The LM102202-Q-x-301 Surface Mount Silicon PIN Diode Limiter is a surface mount, passive two-stage power limiter which can operate over the frequency range of 1 to 2 GHz. It is manufactured using a proven hybrid manufacturing process incorporating PIN Diodes and passive devices integrated onto a ceramic substrate.
