IS31PM7217 1/2 H-bridge Motor Driver

IS31PM7217 Description

IS31PM7217 Preliminary 1 CHANNEL, 1/2 H-bridge Motor Driver GENERAL .
The IS31PM7217 is a 1/2 H-bridge motor driver.

IS31PM7217 Features

*  Wide 6.5V to 35V Input Voltage Range  > 2.0A Output Current  1 channel, ½ H-Bridge Driver  The pins of IN and OUT of several CM7217 could be connected in parallel to increase the driving  Low Rds On Resistance  3.3V and 5V Compatible Logic Supply  Fully built-in Internal Charge Pump  Over-C

IS31PM7217 Applications

*  Solenoid Drivers  DC Brush Motor Drive Lumissil Microsystems
* www. lumissil. com 1 Rev. 00A, 6/19/2019 IS31PM7217 Preliminary Lumissil Microsystems
* www. lumissil. com 2 Rev. 00A, 6/19/2019 IS31PM7217 Preliminary PIN Connection PIN Definitions PINS ENBL (PIN1) IN (PIN2) FA

📥 Download Datasheet

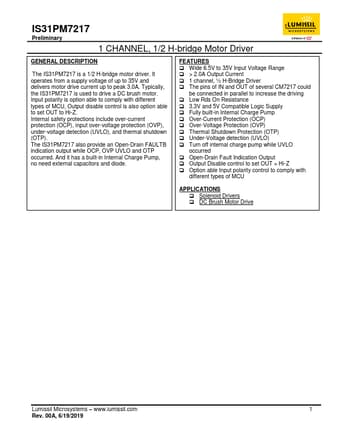

Preview of IS31PM7217 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS31PM7217
Manufacturer
Lumissil
File Size
478.57 KB
Datasheet
IS31PM7217-Lumissil.pdf
Description
1/2 H-bridge Motor Driver
