IS31PM3510 HIGH VOLTAGE ASYNCHRONOUS MULTI-TOPOLOGY DC-DC PWM CONTROLLER

IS31PM3510 Description

IS31PM3510 HIGH VOLTAGE ASYNCHRONOUS MULTI-TOPOLOGY DC-DC PWM CONTROLLER March 2024 GENERAL .
The IS31PM3510 is an asynchronous multi-topology PWM controller that employs a single inductor to provide excellent voltage regulation.

IS31PM3510 Features

* robust protection functions with power good signal output, PGOOD, for MCU fault flag reporting. The IS31PM3510 is available in an eTSSOP-16 package with an exposed thermal pad for enhanced thermal dissipation. FEATURES
* Wide input voltage: 4.5V to 55V
* Supports buck, boost and buc

IS31PM3510 Applications

* Lighting system

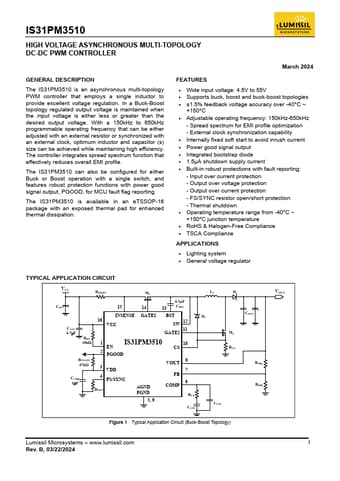

* General voltage regulator TYPICAL APPLICATION CIRCUIT VCC RINSEN M1 0.1µF CIN 15 14 13 CBST CVCC 4.7μF INSENSE GATE1 16 VCC BST SW 12 GATE2 11 REN 10kΩ 1 IS31PM3510 EN 2 PGOOD CS 10 RPGOO D 47kΩ CVDD 1μF 3 VDD 4 FS/SYNC RFSE T AGND PGND 5, 9

📥 Download Datasheet

Preview of IS31PM3510 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS31PM3510
Manufacturer
Lumissil
File Size
805.03 KB
Datasheet
IS31PM3510-Lumissil.pdf
Description
HIGH VOLTAGE ASYNCHRONOUS MULTI-TOPOLOGY DC-DC PWM CONTROLLER
