IS31FL3246 36-CHANNEL LED DRIVER

Lumissil

IS31FL3246 Description

IS31FL3246 36-CHANNEL LED DRIVER GENERAL .
IS31FL3246 is comprised of 36 constant current channels, each channel can be pulse width modulated (PWM) by total 8 bits+10 bits (261890 steps) for sm.

IS31FL3246 Features

* 2.7V to 5.5V supply
* Pin to Pin with IS31FL3236A/IS31FL3237 (QFN-44, 5mm×5mm)
* I2C with register address automatic increment
* Four selectable I2C addresses
* SDB rising edge reset I2C module
* Resistor sets operating current of 25mA (Max. )
* Accurate color rendition

IS31FL3246 Applications

* Hand-held devices for LED display
* LED in home appliances Lumissil Microsystems
* www. lumissil. com 1 Rev. D, 12/16/2021 IS31FL3246 TYPICAL APPLICATION CIRCUIT
* Note 1 VCC = VBattery 1μF 0.1μF
* Note 2 VBUS 2kΩ 2kΩ VCC AD OUT1_G1 OUT2_R1 OUT3_B1 Micro Controller 100k

📥 Download Datasheet

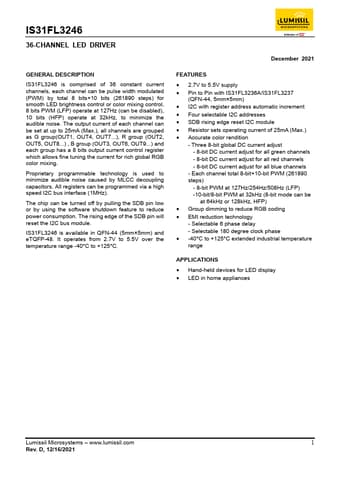

IS31FL3246 Datasheet Preview — Preview of IS31FL3246 PDF
