IS31FL3224 - 24-CHANNEL LED DRIVER

Description

IS31FL3224 is an LED driver with 24 high voltage (16V) constant current channels.

Each channel can be pulse width modulated (PWM) with 7-bit/8-bit precision for smooth LED brightness control.

Features

  • VCC= 3.0V to 5.5V.
  • Support 24 constant current channels, tolerate up to 18V, nominal operation voltage up to 16V.
  • Constant-current output range: 40mA.
  • Current output range (open drain (OD) mode): 100mA× 24 channels.
  • Interface (MODE pins) - DSB (Daisy Chained Serial Bus, 2MHz) - HSB (High Speed Series Bus: 10MHz) - SPI (12MHz) - I2C (1MHz).
  • For DSB and HSB - Built-in PWM generator: 7-bit/ch - 7-bit × 3 global current adjustment.
  • For.

📥 Download Datasheet

Datasheet Details

Part number IS31FL3224
Manufacturer Lumissil
File Size 766.74 KB
Description 24-CHANNEL LED DRIVER
Datasheet download datasheet IS31FL3224 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IS31FL3206 12-CHANNEL LED DRIVER ISSI
IS31FL3216 16 CHANNELS LED DRIVER ISSI
IS31FL3216A 16 CHANNELS LED DRIVER ISSI
IS31FL3218 18 CHANNELS LED DRIVER ISSI
IS31FL3235 28 CHANNELS LED DRIVER ISSI

Other Datasheets by Lumissil

Part Number Description
IS31FL3206 12-CHANNEL LED DRIVER
IS31FL3216 16-CHANNELS LED DRIVER
IS31FL3216A 16-CHANNELS LED DRIVER
IS31FL3218 18-CHANNELS LED DRIVER
IS31FL3235A 28 CHANNELS LED DRIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

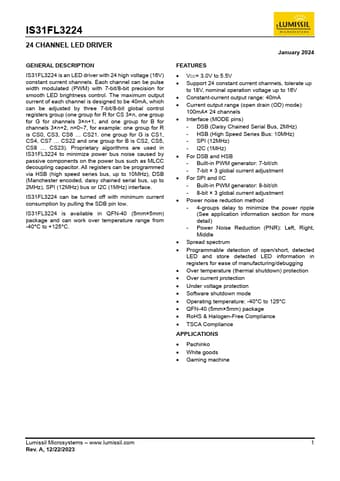

IS31FL3224 24 CHANNEL LED DRIVER GENERAL DESCRIPTION IS31FL3224 is an LED driver with 24 high voltage (16V) constant current channels. Each channel can be pulse width modulated (PWM) with 7-bit/8-bit precision for smooth LED brightness control. The maximum output current of each channel is designed to be 40mA, which can be adjusted by three 7-bit/8-bit global control registers group (one group for R for CS 3×n, one group for G for channels 3×n+1, and one group for B for channels 3×n+2, n=0~7, for example: one group for R is CS0, CS3, CS6 … CS21. one group for G is CS1, CS4, CS7 … CS22 and one group for B is CS2, CS5, CS8 … CS23). Proprietary algorithms are used in IS31FL3224 to minimize power bus noise caused by passive components on the power bus such as MLCC decoupling capacitor.
