IS31FL3196A 6-CHANNEL LIGHT EFFECT LED DRIVER

Lumissil

IS31FL3196A Description

IS31FL3196A 6-CHANNEL LIGHT EFFECT LED DRIVER August 2020 GENERAL .
IS31FL3196A is a 6-channel light effect LED driver which features two-dimensional auto breathing mode and an audio modulated display mode.

IS31FL3196A Features

* two-dimensional auto breathing mode and an audio modulated display mode. It has One Shot Programming mode and PWM Control mode for RGB lighting effects. The maximum output current can be adjusted in 8 levels (5mA~40mA). In PWM Control mode, the PWM duty cycle of each output can be independently prog

IS31FL3196A Applications

* Mobile phones and other hand-held devices for LED display
* LED in home appliances TYPICAL APPLICATION CIRCUIT Figure 1 Typical Application Circuit Note 1: The IC should be placed far away from the mobile antenna in order to prevent the EMI. Lumissil Microsystems
* www. lumissil.

📥 Download Datasheet

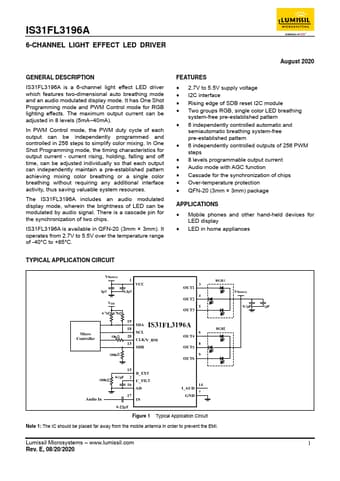

IS31FL3196A Datasheet Preview — Preview of IS31FL3196A PDF

Datasheet Details

Part number: IS31FL3196A
Manufacturer: Lumissil
File Size: 445.60 KB
Datasheet: IS31FL3196A-Lumissil.pdf
Description: 6-CHANNEL LIGHT EFFECT LED DRIVER
